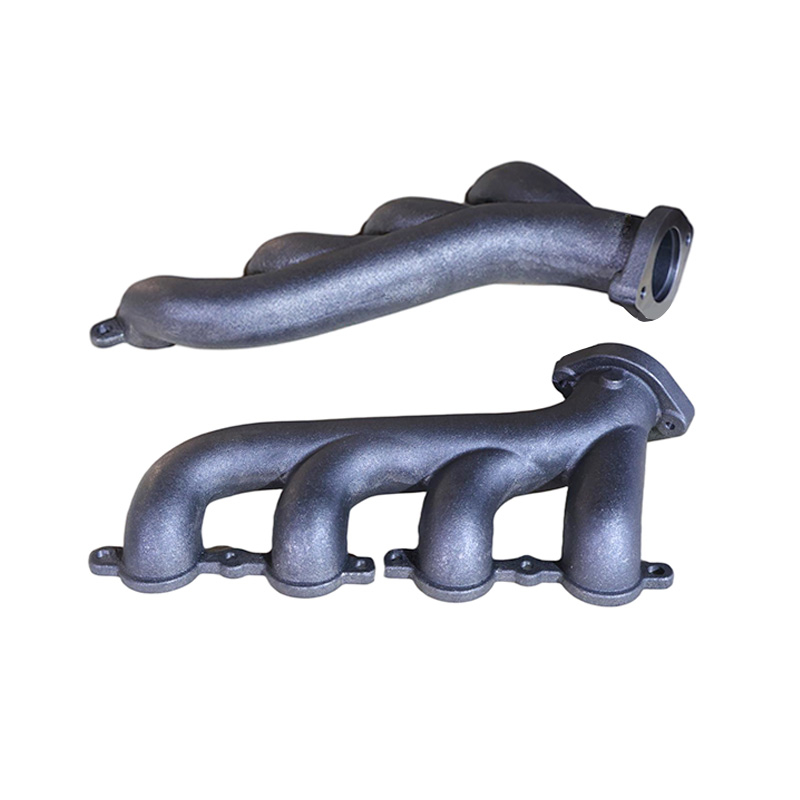

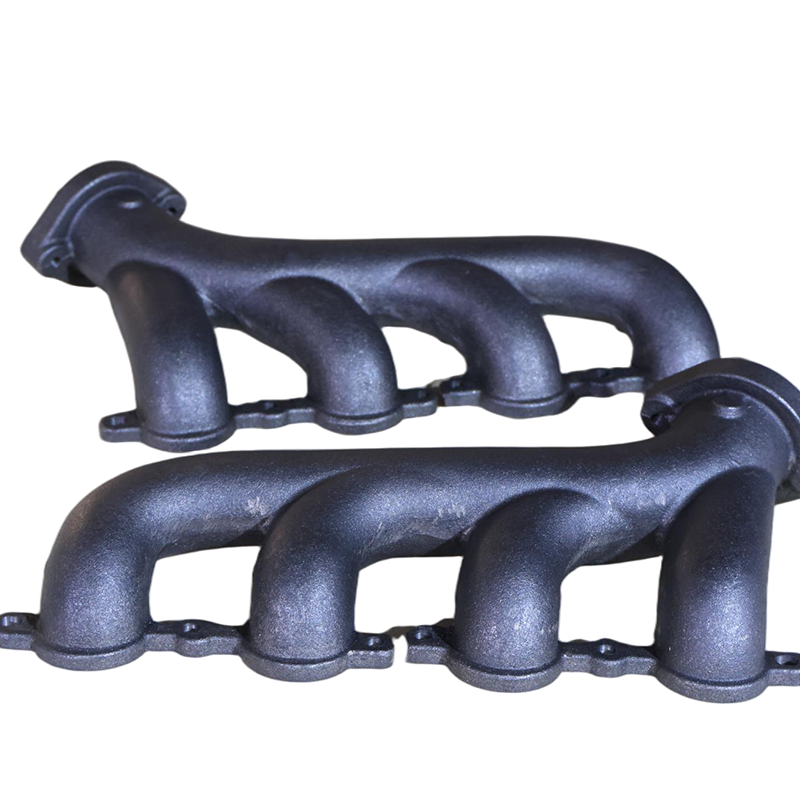

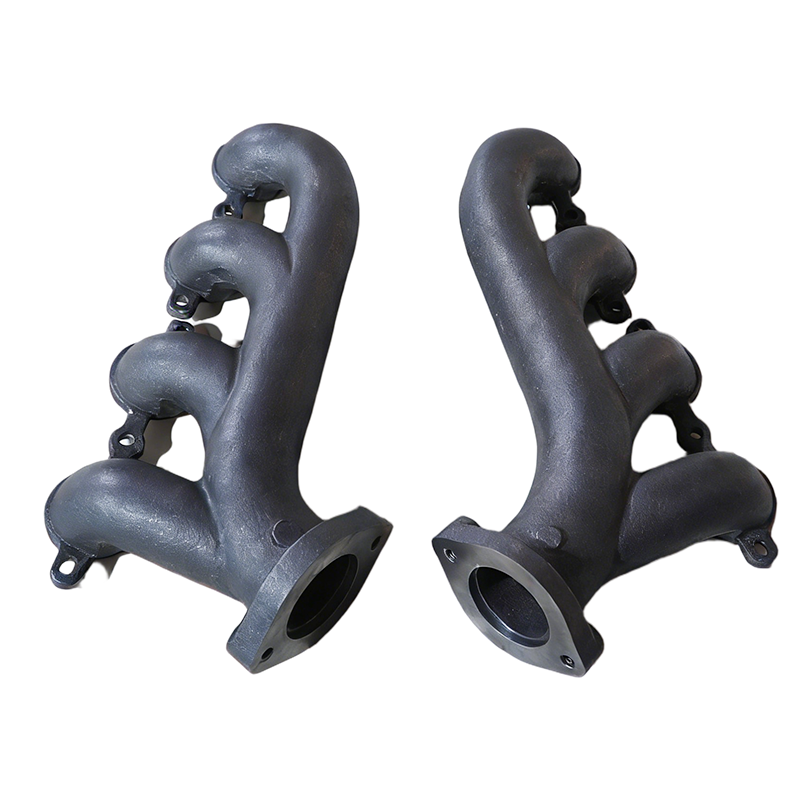

An automotive exhaust manifold is an essential engine component that connects the cylinder head to the exhaust system. It collects combustion gases from individual cylinders and directs them toward the turbocharger or downstream exhaust components, depending on the engine design.
For engine parts distributors, aftermarket suppliers, and automotive repair businesses, selecting the right exhaust manifold is important for maintaining proper engine assembly and exhaust system operation. SEHY supplies cast iron automotive exhaust manifolds for selected gasoline and diesel engine applications, supporting replacement parts sourcing and customized component production.
With casting and machining capabilities, SEHY can manufacture exhaust manifold components according to customer drawings, samples, and specified technical requirements.
| Availability: | |
|---|---|
| Quantity: | |
Within an engine assembly, the exhaust manifold serves as the connection between the cylinder head and the exhaust system. Each runner receives exhaust gas from an individual cylinder, while the collector section combines these flows and directs them toward the designated outlet.
The manifold's configuration is closely related to the engine's cylinder arrangement and exhaust system layout. Its mounting position, port spacing, flange geometry, and outlet direction must correspond to the surrounding engine components.
For engine parts buyers, these details are particularly important when sourcing replacement components. A manifold with a similar external appearance may still have different mounting dimensions or connection configurations. Checking the original part number, engine information, and installation interfaces helps reduce the risk of selecting an incompatible component.
The inlet ports and mounting flange connect the manifold to the engine cylinder head. Port arrangement, bolt spacing, and gasket contact areas should match the corresponding engine design to support proper installation and exhaust sealing.
The runner layout determines how exhaust gases from individual cylinders enter the common outlet section. Different engine configurations may require different runner arrangements, passage dimensions, and collector positions.
The outlet connects the manifold to the next component in the exhaust system. Depending on the engine configuration, this may involve a turbocharger inlet, exhaust pipe, or another downstream connection. Flange shape, bolt arrangement, and outlet orientation should be verified before ordering.
Mounting bosses, threaded holes, flange thickness, and connection surfaces influence installation accuracy. These features should be considered together rather than evaluating the component by overall length and width alone.
Cast iron is a widely used material for automotive exhaust manifold production because it offers suitable casting characteristics and structural properties for many engine applications.
Its ability to form complex passage geometries makes it practical for producing integrated manifold structures with multiple runners and connecting sections.
For engine parts manufacturing, material selection should consider:
Mechanical Strength: The casting needs to support its own weight and withstand loads transferred through engine mounting points.
Thermal Stability: Material properties should suit the temperature variations experienced during engine operation.
Casting Characteristics: The selected grade should be suitable for the component's wall thickness, runner geometry, and overall casting structure.
Machinability: Mounting faces, bolt holes, and connection areas may require secondary machining to achieve the specified dimensions.
The final cast iron grade should be determined according to the actual engine application and customer material requirements.
A replacement exhaust manifold needs to reproduce the important functional features of the original component, not simply its general shape. Casting and machining therefore need to work together to achieve the required geometry and assembly interfaces.
SEHY supports the following manufacturing activities:
Casting Pattern Development
Patterns are prepared according to the approved component design. Runner layout, flange structure, casting allowances, and other geometric details are considered during production preparation.
Molding and Casting
The casting process forms the main manifold body, including its exhaust passages, connecting sections, and mounting features.
Machining of Critical Areas
Specified mounting surfaces, bolt holes, threaded connections, and outlet interfaces can undergo additional machining according to technical drawings.
Dimensional Inspection
Important dimensions and assembly features are checked against the agreed specifications to help ensure consistency between the manufactured component and the approved design.
Item | Description |
|---|---|
Product Name | Automotive Exhaust Manifold |
Product Category | Engine Parts |
Material | Cast Iron |
Component Function | Exhaust Gas Collection and Routing |
Main Structure | Runners, Collector and Mounting Flanges |
Manufacturing Process | Casting |
Secondary Processing | CNC Machining, as required |
Application | Automotive Gasoline and Diesel Engines |
Other Applications | Selected Trucks and Engineering Machinery |
Dimensions | According to Product Specifications |
Surface Treatment | According to Customer Requirements |
Production Type | Replacement / OEM Component Supply |
Customization | Based on Drawings or Samples |
Automotive exhaust manifolds are required across different engine maintenance and component sourcing channels.
Passenger Vehicle Engine Parts
Replacement exhaust manifold components for selected gasoline and diesel passenger vehicle engines. Accurate matching of cylinder head interfaces and exhaust outlet connections is important during component replacement.
Commercial Vehicle Engine Parts
Trucks and commercial vehicles rely on engine exhaust components designed for their specific powertrain configurations. Exhaust manifolds are commonly sourced through engine parts distributors, commercial vehicle repair networks, and aftermarket suppliers.
Construction Machinery Engine Parts
Engineering machinery uses a variety of diesel engine configurations. Replacement manifold requirements may involve specific runner arrangements, mounting positions, and downstream exhaust connections.
Engine Repair and Rebuilding
During engine overhaul, damaged or cracked exhaust manifolds may need replacement. Repair workshops and engine parts suppliers require components that correspond to the original installation dimensions and connection structure.
For engine parts wholesalers and distributors, product consistency and accurate component identification are important when building a reliable replacement parts inventory.
SEHY supports B2B buyers looking for cast iron automotive exhaust manifolds through customized production and export supply. Buyers can submit existing product samples, engineering drawings, or reference information to discuss the required component specifications.
For efficient product evaluation, we recommend preparing:
Engine manufacturer, model, and version
Original exhaust manifold part number, if available
Product photographs or physical sample
Mounting flange and exhaust port dimensions
Outlet connection and bolt hole information
Required cast iron grade
Machining and surface finish requirements
Estimated order quantity
These details help establish the correct component configuration before manufacturing and quotation.
Whether you are replenishing replacement engine parts inventory or sourcing components for an OEM project, SEHY can discuss suitable casting and machining arrangements based on your requirements.
Contact SEHY to inquire about automotive exhaust manifold supply and customized engine parts production.
Yes. The exhaust manifold is part of the engine's exhaust assembly and is normally mounted directly to the cylinder head. It collects exhaust gases from the engine cylinders and directs them into the downstream exhaust system.
Check the engine model, original part number, cylinder head port arrangement, mounting bolt positions, flange dimensions, and exhaust outlet configuration. These details are more reliable for confirming compatibility than appearance alone.
Yes. Cast iron is commonly used for diesel engine exhaust manifold applications. The appropriate grade and casting design should be selected according to the engine's operating conditions and material specifications.
Yes. Replacement sourcing can be based on original component references, samples, or technical drawings. Buyers should verify the engine version and installation interfaces before confirming an order.
Some areas may require secondary machining, particularly cylinder head mounting faces, bolt holes, and exhaust outlet connections. The actual machining scope depends on the component design and dimensional requirements.
Useful information includes the engine model, OE reference, component photographs or drawings, material requirements, key dimensions, machining specifications, and expected order quantity. This allows the supplier to evaluate the manufacturing requirements and prepare a more accurate quotation.
