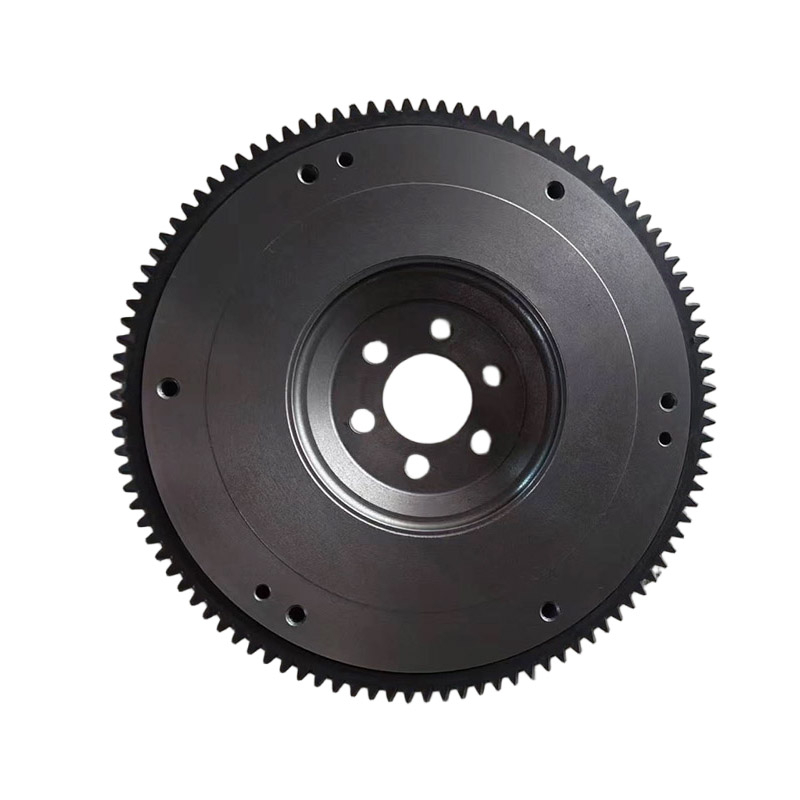

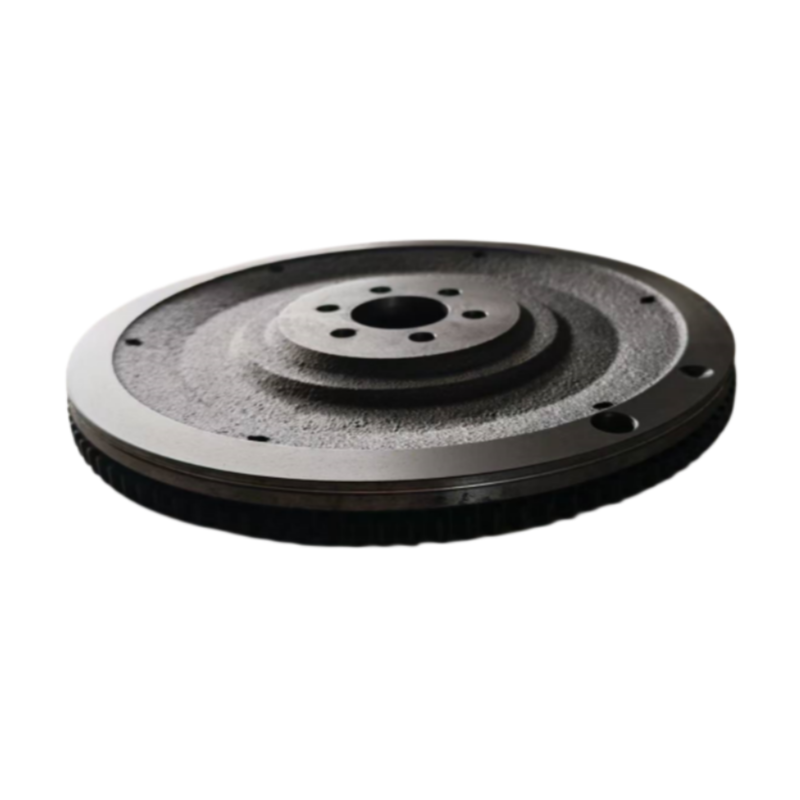

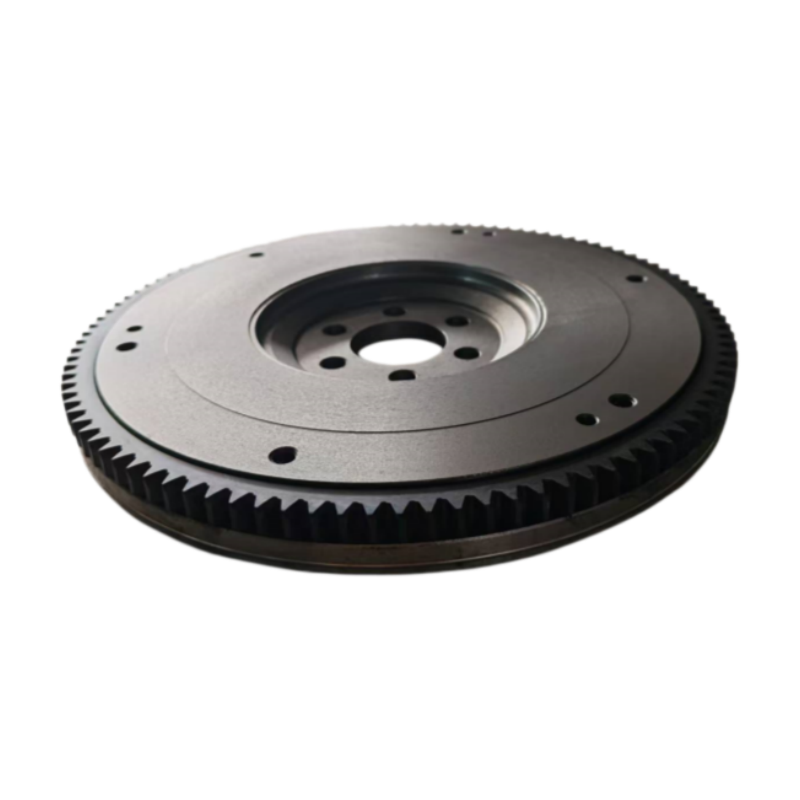

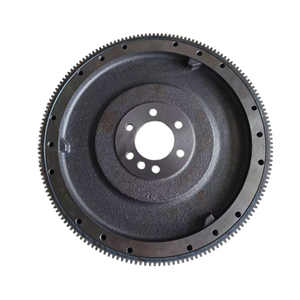

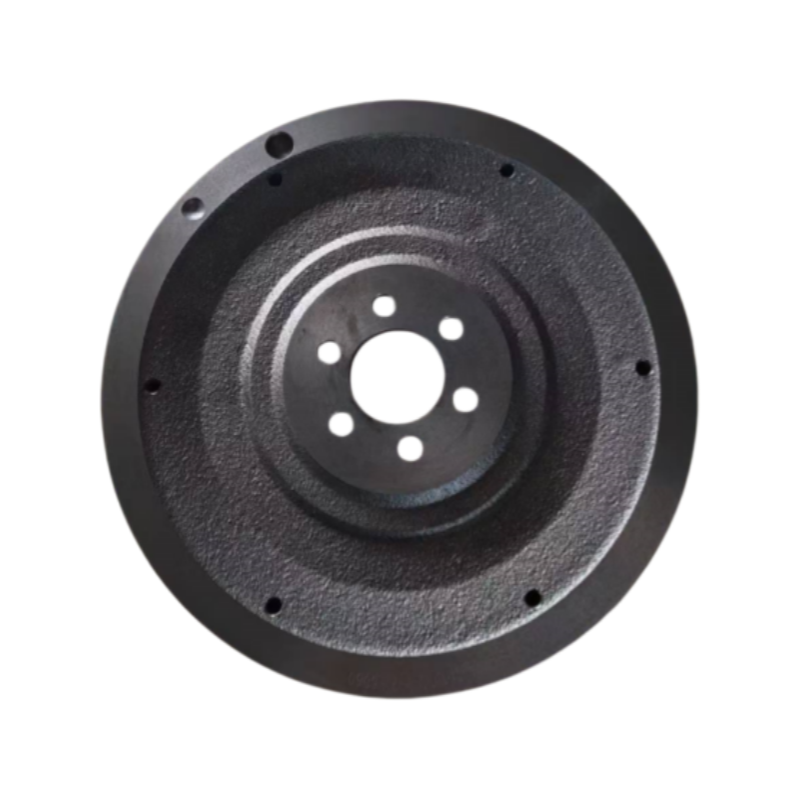

A diesel engine flywheel is an important rotating component in the engine powertrain, particularly in applications that require consistent torque delivery under varying operating loads. Its design needs to account for the engine's firing characteristics, operating speed, drivetrain configuration, and intended working conditions.
Compared with general automotive applications, diesel engines used in commercial vehicles and industrial equipment often operate under sustained loads, frequent load changes, or extended low-speed conditions. These operating characteristics make the selection of a suitable flywheel particularly important for the overall powertrain configuration.
SEHY supplies cast iron diesel engine flywheels for selected engine applications, supporting casting and machining requirements based on customer drawings, samples, and technical specifications. Our manufacturing solutions are intended for engine parts distributors, equipment manufacturers, and replacement parts suppliers.
| Availability: | |
|---|---|
Diesel engines are widely used in equipment that requires dependable power delivery over extended operating periods. Commercial trucks may experience repeated acceleration, braking, and gear changes, while industrial diesel engines and generator sets often operate for long periods under changing or relatively constant loads.
These different operating patterns place specific requirements on the flywheel assembly.
For commercial diesel engines, combustion torque fluctuations can be more noticeable at lower engine speeds, particularly in configurations with fewer cylinders. The flywheel's rotational inertia helps smooth these variations and supports more consistent crankshaft rotation.
In equipment operating under changing loads, the flywheel specification also needs to correspond to the engine's intended speed range and torque characteristics. An unsuitable inertia value may affect engine response and the behavior of the connected drivetrain.
For this reason, diesel engine flywheel selection should consider the actual engine application rather than relying on overall dimensions alone.
Diesel engines are commonly selected for applications requiring substantial torque at relatively low operating speeds. The flywheel's mass distribution and rotational inertia need to correspond to the engine's operating characteristics.
For replacement or OEM projects, the original flywheel specification provides an important reference. Changes in flywheel mass or inertia should only be made after evaluating the engine manufacturer's requirements.
In manual-transmission diesel powertrains, the flywheel forms part of the clutch assembly. Its friction surface, clutch mounting pattern, locating features, and overall installation depth must match the corresponding clutch components.
Incorrect interface dimensions may lead to clutch alignment difficulties, uneven contact, or improper engagement. Therefore, clutch size and mounting configuration should be confirmed together with the engine model.
Reliable engine starting depends on the correct interaction between the starter motor pinion and the flywheel ring gear.
Important specifications include ring gear tooth count, pitch diameter, tooth profile, and installation position. These details should match the starter motor arrangement specified for the diesel engine.
The flywheel must fit within the available space at the rear of the engine. Its overall diameter, axial depth, and mounting configuration need to correspond to the flywheel housing and connected drivetrain components.
For some diesel power units, additional features such as pilot bearing arrangements or engine speed sensor targets may also be required. These should be confirmed according to the original engine design.
Commercial truck engines experience frequent changes in vehicle speed, transmission engagement, and driving load. Their flywheel configurations must work with the specified clutch assembly and transmission layout.
For replacement projects, engine model, OEM reference, clutch dimensions, and starter ring gear details are useful starting points for identifying the correct component.
Generator applications have different operating priorities from vehicle powertrains. The engine and generator are connected as a power unit, so the flywheel configuration must correspond to the coupling arrangement and the required engine-generator interface.
Operating speed and the expected load profile are important considerations when evaluating a replacement or customized flywheel. The correct configuration should follow the generator manufacturer's design requirements.
Diesel engines used in excavators, loaders, tractors, and other off-highway equipment may encounter changing loads during working cycles.
Their flywheel requirements depend on the engine configuration, operating speed, transmission arrangement, and equipment design. Accurate identification is important when sourcing replacement components for machinery maintenance.
Marine diesel power systems may operate for extended periods under relatively sustained loads. Flywheel selection should take into account the engine model, coupling arrangement, clutch configuration where applicable, and the installation requirements of the marine powertrain.
Material selection for a diesel engine flywheel should be based on its structural design, rotational requirements, and intended operating conditions.
Cast iron is commonly used for diesel engine flywheels because of its suitability for producing substantial rotating components with defined geometries and machined interfaces.
When evaluating the material specification, several factors deserve attention:
Mechanical Strength: The material must meet the structural requirements associated with engine torque and rotational loading.
Rotational Inertia: Material distribution and component geometry determine the flywheel's inertia characteristics.
Machinability: The material should support the required finishing operations on mounting and clutch contact surfaces.
Dimensional Stability: The finished component must maintain the specified geometry under its intended operating conditions.
SEHY works with cast iron material options for customized flywheel production. The exact grade should be confirmed according to the customer's drawing, mechanical requirements, and application.
Item | Description |
|---|---|
Product Name | Diesel Engine Flywheel |
Product Type | Diesel Powertrain Component |
Material | Cast Iron |
Material Grade | According to Application Requirements |
Manufacturing Process | Casting |
Secondary Processing | CNC Machining |
Engine Type | Diesel Engine |
Installation Position | Rear Crankshaft End |
Clutch Interface | According to Original Design |
Starter Ring Gear | According to Engine Specifications |
Dynamic Balance | According to Technical Requirements |
Application | Trucks, Industrial Engines, Generator Sets and Machinery |
Customization | OEM / ODM |
Production Basis | Drawings, Samples or OEM References |
SEHY supports customized diesel engine flywheel production for customers requiring components that match specific engine and drivetrain configurations.
The manufacturing requirements can be evaluated according to the original part design, with particular attention to the crankshaft mounting interface, clutch connection, ring gear arrangement, and specified rotational characteristics.
Our manufacturing service can include:
Drawing and Application Review
Review engine information, original part references, drawings, and installation requirements to establish the required flywheel configuration.
Casting and Material Preparation
Determine a suitable casting material and manufacturing route according to the approved design and technical specifications.
Machining of Functional Interfaces
Process the required mounting surfaces, center bores, bolt holes, clutch contact areas, and other specified features.
Inspection and Specification Verification
Check critical dimensions and agreed inspection items. Dynamic balancing and additional testing can be arranged according to the project requirements.
Packing and Delivery
Prepare the finished components for shipment according to the agreed packaging and order requirements.
Diesel engine flywheels are not interchangeable simply because they have similar external shapes. Differences in crankshaft mounting patterns, clutch dimensions, ring gear specifications, and flywheel housing arrangements can affect installation compatibility.
SEHY provides customized manufacturing support for diesel engine parts distributors, aftermarket suppliers, and equipment manufacturers.
To evaluate a diesel engine flywheel project, please provide:
Engine brand, model, and serial number
Original OEM part number, if available
Existing flywheel sample or reference photographs
Flywheel diameter, thickness, and center bore dimensions
Crankshaft mounting hole arrangement
Clutch size and mounting configuration
Starter ring gear tooth count and specifications
Required material grade and rotational inertia
Operating speed and intended equipment application
Estimated order quantity
These details help establish the appropriate product configuration and manufacturing requirements before quotation.
Contact SEHY to discuss your diesel engine flywheel sourcing or customized production requirements.
The main difference lies in the engine's operating characteristics and the corresponding flywheel design requirements. Diesel engines often operate with substantial low-speed torque and different combustion torque patterns. Flywheel inertia, material, and drivetrain interfaces should therefore be selected according to the specific engine design.
Start with the engine manufacturer, model, serial number, and original part number. Then verify the crankshaft mounting pattern, flywheel dimensions, clutch configuration, and starter ring gear specifications. The original component or engineering drawing is particularly useful for confirmation.
Yes, diesel generator sets also use flywheels as part of their engine rotating assembly. However, the required flywheel configuration depends on the engine-generator coupling arrangement, operating speed, and original equipment design.
Yes. Rotational inertia influences how the engine responds to periodic torque fluctuations and changes in load. The appropriate value depends on the engine design and application. It should not be modified without checking the manufacturer's specifications.
The starter motor pinion must engage correctly with the flywheel ring gear. Differences in tooth count, tooth geometry, pitch diameter, or mounting position may prevent proper engagement and cause starting problems.
Yes. SEHY supports customized casting and machining based on customer drawings, samples, and technical specifications. Engine information, mounting dimensions, clutch requirements, and ring gear details help establish the correct manufacturing requirements.
