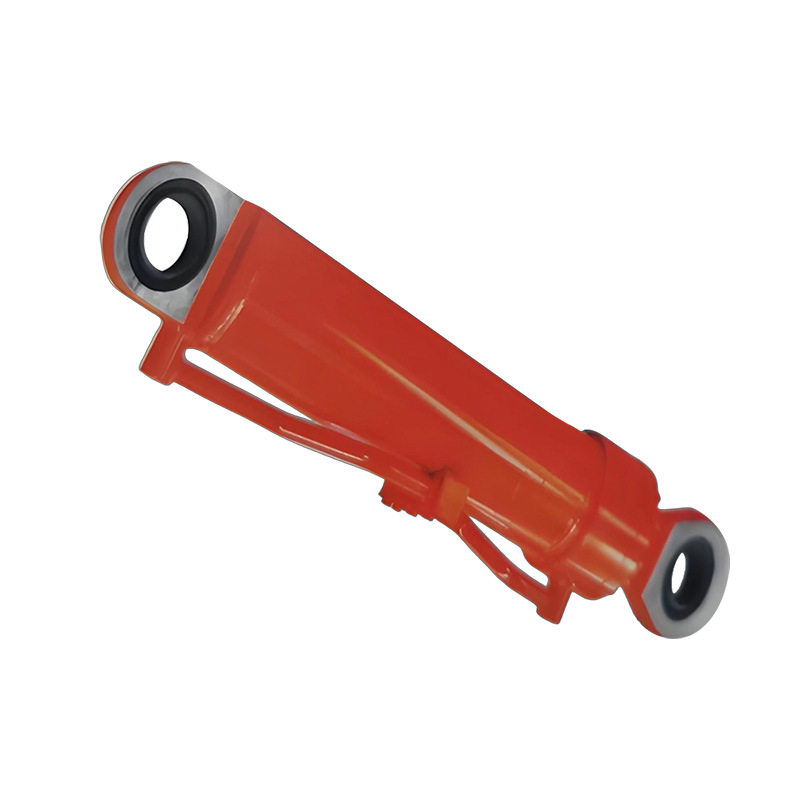

Unmatched Durability: Constructed with high-strength carbon steel and precision-welded joints, this cylinder withstands extreme loads, shocks, and vibration common in construction environments.
Leak-Proof Performance: Equipped with premium NBR/PU seals and precision-machined surfaces to prevent fluid loss, ensuring consistent pressure and long-term reliability.
High-Pressure Resistance: Rated for working pressures up to 25 MPa, making it suitable for heavy-duty applications like excavators, loaders, and presses.
Low Maintenance Design: Smooth, low-friction piston rod and self-lubricating components reduce wear and extend service intervals, lowering operational costs.
Customizable Options: Available in various bore, stroke, and mounting configurations to match specific machinery requirements, including clevis, eye, and flange mounts.
Double-Acting Design: Delivers force in both directions, enabling precise control for lifting, pushing, and pulling operations.
Precision-Ground Piston Rod: Hard chrome-plated for wear resistance and corrosion protection, ensuring smooth movement and minimal seal wear.

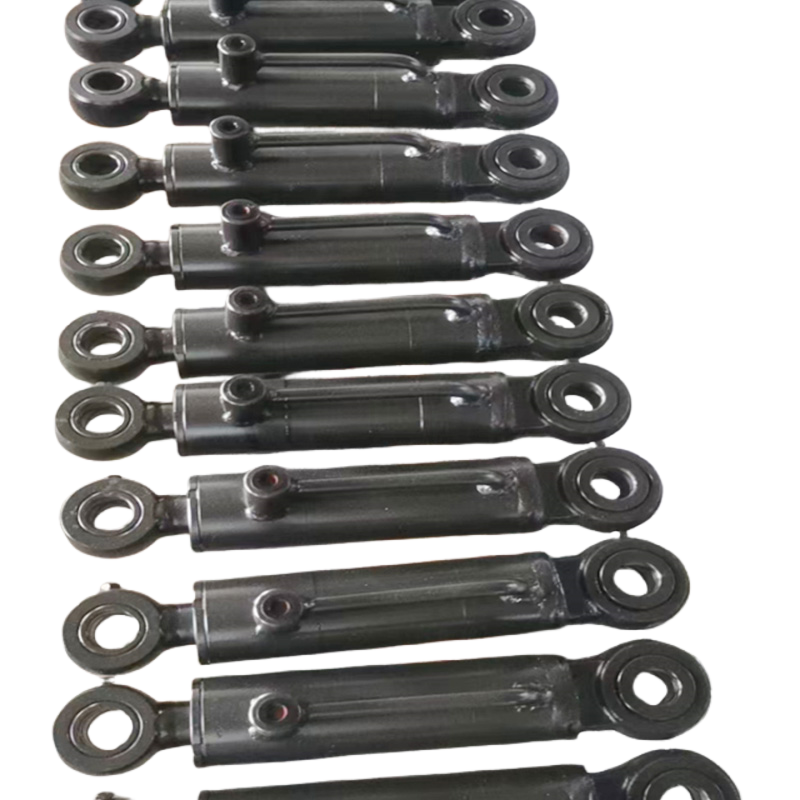

Integrated Mounting Eyes: Robust, reinforced mounting points for easy installation and secure attachment to machinery.
Corrosion-Resistant Coating: Epoxy paint finish protects against rust, chemicals, and harsh weather conditions, extending the cylinder’s lifespan.
High-Quality Sealing System: Multiple seal layers (rod seals, piston seals, wipers) prevent contamination and fluid leakage, even in dusty or muddy environments.
Optimized Flow Path: Internal porting designed for efficient hydraulic fluid flow, reducing pressure drop and improving responsiveness.
This versatile hydraulic cylinder is widely used in:
Construction Machinery: Excavators, backhoes, bulldozers, and loaders for digging, lifting, and bucket operations.
Material Handling: Forklifts, cranes, and aerial work platforms for lifting and positioning heavy loads.
Agricultural Equipment: Tractors, harvesters, and farm implements for lifting, tilting, and control functions.
Industrial Machinery: Hydraulic presses, shears, and balers for pressing, cutting, and compacting tasks.
Waste Management: Garbage trucks and compactors for lifting and compressing waste materials.
Marine & Offshore: Deck machinery and lifting equipment, with corrosion-resistant options available.
All could be customized by clients' requirement
Parameter | Specification |
|---|---|
Bore Diameter | 40–200 mm (customizable) |
Rod Diameter | 25–140 mm (customizable) |
Stroke Length | 50–3000 mm (customizable) |
Working Pressure | 16–25 MPa |
Test Pressure | 24–37.5 MPa |
Operating Temperature | -20°C ~ +80°C |
Fluid Compatibility | Standard hydraulic oil, anti-wear oil |
Mounting Type | Clevis / Eye / Flange / Trunnion |
Material | High-grade carbon steel (45# / 20MnV6) |
Surface Treatment | Hard chrome plating (rod) + epoxy paint (body) |
Seal Material | NBR, PU, FKM (optional) |
Warranty | 12 months against manufacturing defects |
ISO 9001 Certified: All cylinders are manufactured under strict quality control standards, with 100% pressure testing and leak checks before shipment.
Precision Machining: CNC-machined components ensure tight tolerances and consistent performance.
Rigorous Testing: Each cylinder undergoes pressure, endurance, and leak tests to verify performance under real-world conditions.
Traceability: Every unit is serialized for full traceability, ensuring easy identification and after-sales support.
Q: Can you customize the cylinder dimensions for my specific machinery?
A: Yes, we offer full customization for bore, stroke, mounting style, and pressure ratings. Please provide your technical specifications, and our engineering team will design a tailored solution.
Q: What is the lead time for standard vs. custom orders?
A: Standard models ship within 2–3 weeks. Custom orders typically take 3–5 weeks, depending on complexity and order quantity.
Q: Do you provide OEM/ODM services?
A: Absolutely. We can manufacture cylinders with your branding, specifications, and packaging, supporting OEM/ODM projects for global clients.
Q: What maintenance is required for these cylinders?
A: Regular checks include inspecting seals for leaks, ensuring proper fluid levels, and keeping the piston rod clean. We recommend periodic seal replacement based on usage conditions.
Q: What is the warranty coverage?
A: Our hydraulic cylinders come with a 12-month warranty against manufacturing defects. This does not cover damage from misuse, improper installation, or normal wear and tear.
