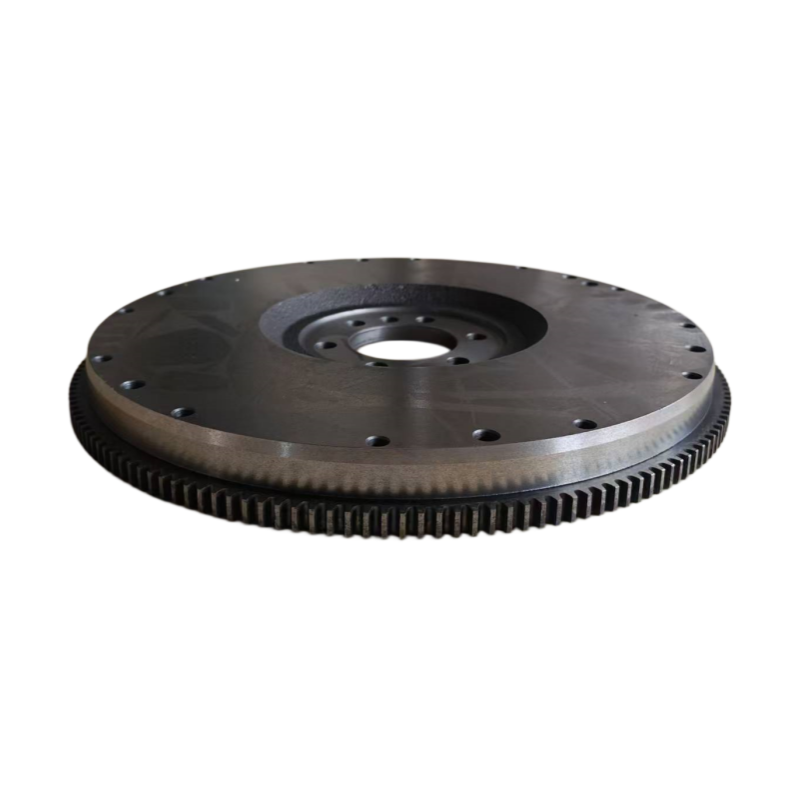

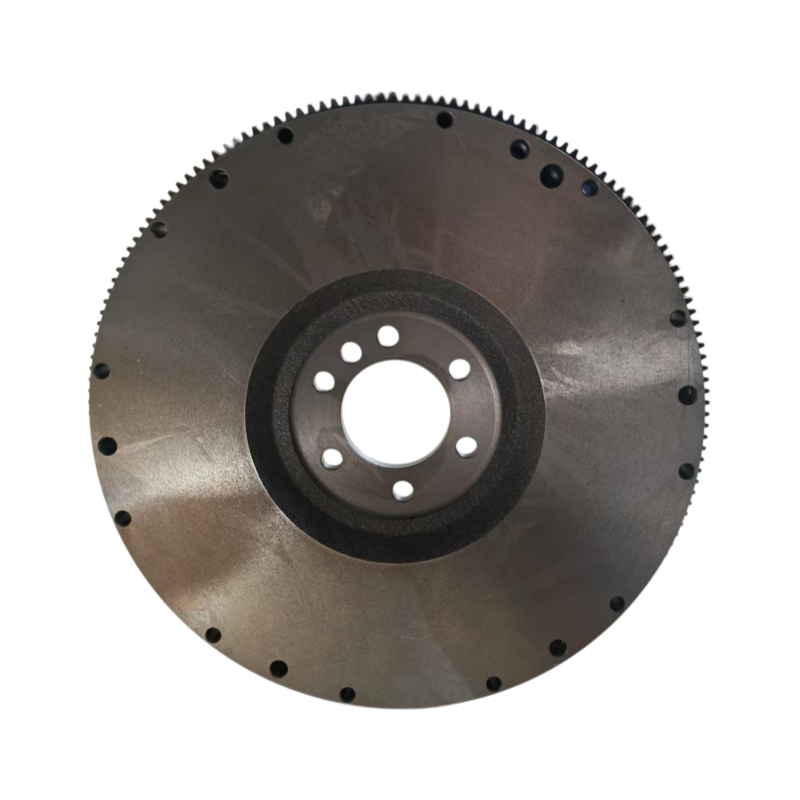

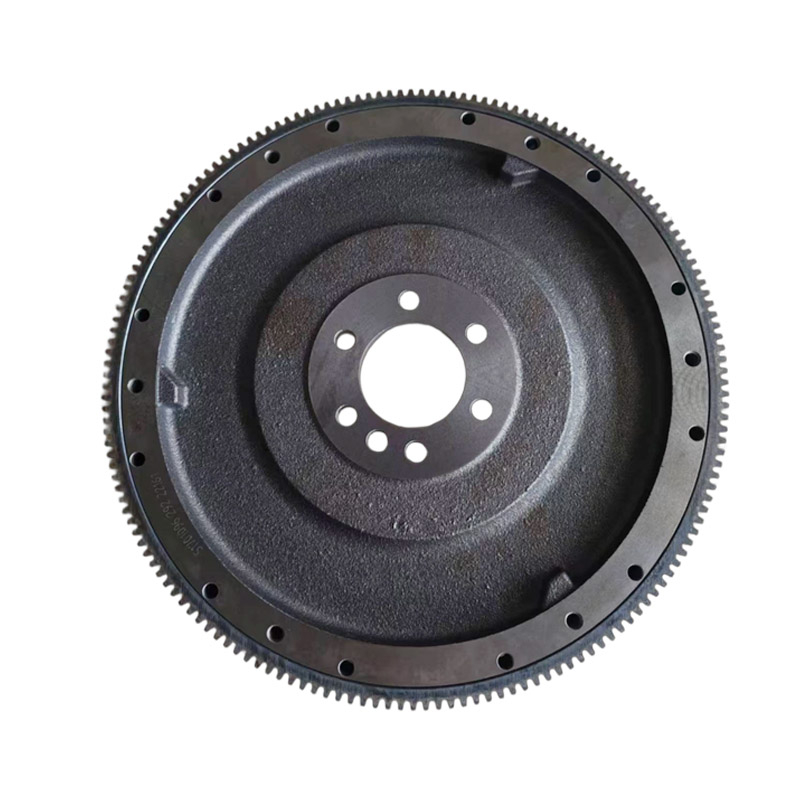

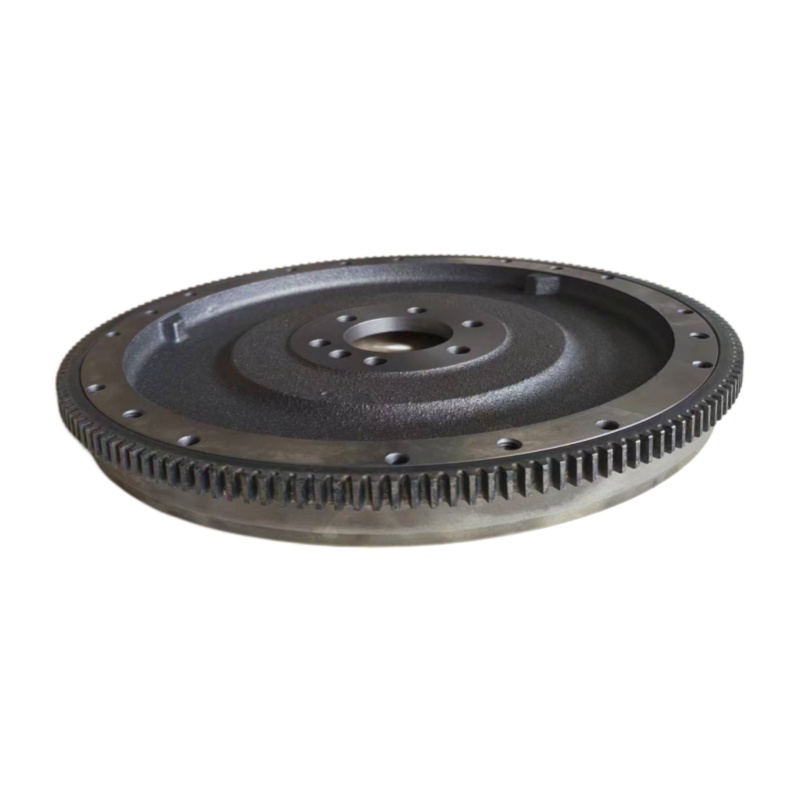

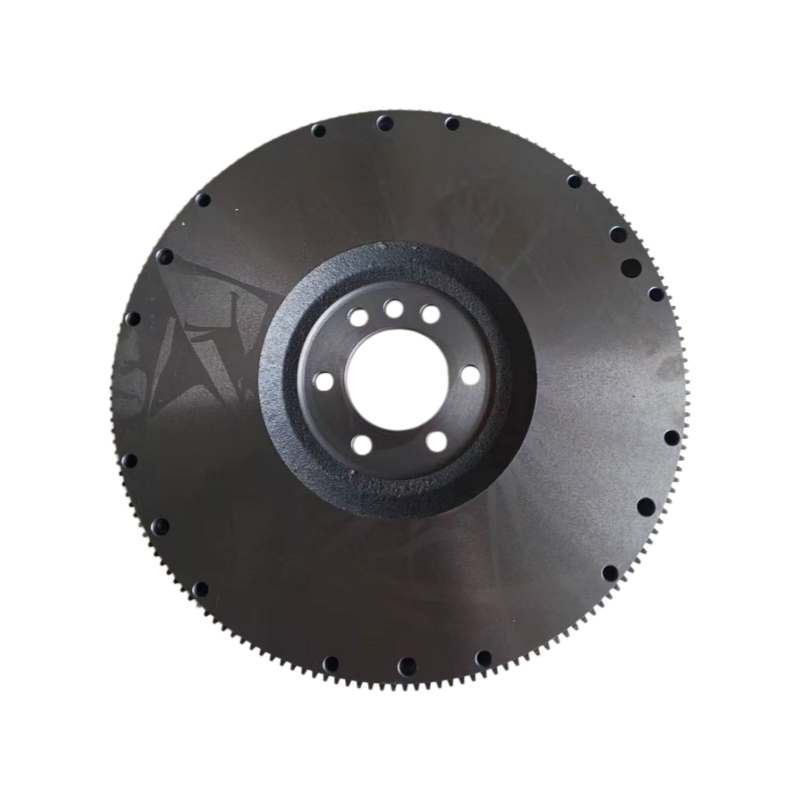

A marine engine flywheel is an important component of the rotating assembly in marine propulsion and auxiliary power systems. Installed at the rear end of the engine crankshaft, it provides the required rotating interface for connecting the engine with a marine gearbox, transmission coupling, or generator drive arrangement.
Unlike general automotive applications, marine engine flywheel selection must consider the specific installation layout of the vessel's power system. Engine model, flywheel housing dimensions, gearbox connection, starter ring gear, and coupling configuration all influence component compatibility.
SEHY supplies cast iron marine engine flywheels for customized manufacturing and replacement projects. With casting and machining capabilities, we support component production according to engineering drawings, existing samples, and confirmed technical specifications.
| Availability: | |
|---|---|
Marine engines serve different purposes depending on vessel design. The flywheel configuration must correspond to the equipment connected to the engine and the way power is delivered.
Inboard marine diesel engines commonly transmit power through a marine reduction gearbox before driving the propeller shaft. The flywheel is part of the engine-side rotating assembly and connects with the gearbox through the specified coupling or drive plate arrangement.
For these applications, the flywheel must match the engine crankshaft mounting pattern and the transmission-side connection requirements. Incorrect axial dimensions or interface geometry may affect installation and the alignment of connected components.
Marine generator engines use a different output arrangement from propulsion engines. Instead of connecting to a marine gearbox, the flywheel may work with an alternator coupling and adapter assembly.
Flywheel configuration, coupling dimensions, operating speed, and generator mounting arrangement need to be considered together. These details are important when replacing a flywheel or developing components for a new marine generator project.
Vessels often use separate diesel engines to power auxiliary equipment and onboard electrical systems. Depending on the installation, these engines may require different flywheel and housing configurations from the main propulsion engine.
Identifying the actual equipment arrangement helps ensure that the selected component matches the intended installation.
A marine engine flywheel should be evaluated as part of the complete engine installation rather than as an independent casting. Several interfaces deserve particular attention during product selection.
The flywheel housing determines the installation space and provides the structural connection between the engine and downstream equipment. Housing size, mounting bolt positions, and axial clearances should correspond to the original engine configuration.
Where an SAE flywheel housing or related standardized interface is specified, the applicable dimensions should be confirmed against the engine and transmission documentation.
For propulsion systems, the flywheel may be connected to a marine gearbox through a flexible coupling, drive plate, or another specified transmission component.
Important details include mounting hole patterns, coupling diameter, pilot dimensions, and axial positioning. These parameters should be checked together with the gearbox model to avoid assembly incompatibility.
The starter ring gear allows the starter motor to crank the marine diesel engine. Tooth count, pitch diameter, tooth profile, and installation position need to match the corresponding starter motor arrangement.
When sourcing replacement flywheels, the original ring gear specification should be verified rather than assuming that similar-looking products are interchangeable.
The crankshaft flange is the primary mounting interface of the flywheel. Center register dimensions, bolt quantity, bolt circle diameter, and contact surface geometry need to follow the engine manufacturer's requirements.
These dimensions are especially important when developing replacement components for engines with different production versions or installation revisions.
Marine power systems may operate for extended periods under relatively continuous loads. Propulsion engines also experience changes in operating conditions as vessel speed, propeller resistance, and transmission loading vary.
For flywheel manufacturing, the following factors should be considered:
Torsional Vibration Compatibility
The engine and connected drivetrain form a torsional system. Flywheel inertia and coupling characteristics influence the system's torsional response. The flywheel specification should therefore remain consistent with the engine manufacturer's approved configuration and any specified torsional vibration analysis.
Continuous Operating Requirements
Main propulsion engines and marine generator sets may operate for long periods. Material selection, structural geometry, and machining requirements should be evaluated according to the engine's rated speed, load profile, and intended duty.
Installation Environment
Marine engine rooms can experience high humidity, temperature changes, and salt-laden atmospheric exposure. Although the flywheel normally operates inside its housing rather than in direct seawater contact, appropriate surface protection and packaging may be specified according to storage and installation conditions.
SEHY provides cast iron flywheel manufacturing based on the required component structure and material specification.
Available cast iron material options within our manufacturing range include HT200, HT250, HT300, QT400, QT450, and QT500. The final material grade should be selected according to the original design, mechanical requirements, and approved customer specifications.
The manufacturing scope can include:
Material Specification: Review the required cast iron grade and mechanical property requirements.
Casting Development: Prepare the casting design and tooling according to the approved flywheel geometry.
Machining of Mounting Interfaces: Process the crankshaft mounting face, center bore, bolt holes, and other specified connection features.
Coupling Interface Machining: Finish the required transmission-side mounting features according to the engineering drawing.
Ring Gear Assembly: Arrange ring gear fitting where it is included in the product design and manufacturing scope.
Quality Verification: Inspect critical dimensions and agreed quality requirements, with dynamic balancing and additional testing arranged according to the project specification.
Item | Description |
|---|---|
Product Name | Marine Engine Flywheel |
Product Type | Marine Powertrain Component |
Material | Cast Iron |
Material Grade | HT / QT Series, According to Requirements |
Manufacturing Process | Casting |
Secondary Processing | CNC Machining |
Engine Application | Marine Diesel Engines |
Installation Position | Rear Crankshaft End |
Transmission Interface | Marine Gearbox / Coupling, as Specified |
Starter Ring Gear | According to Engine Design |
Flywheel Housing Compatibility | Engine-Specific |
Dynamic Balance | According to Technical Requirements |
Surface Protection | Customized |
Customization | OEM / ODM |
Production Basis | Drawings / Samples / OEM References |
Marine engine flywheels are used in different vessel power systems where correct engine-side installation and transmission compatibility are required.
Commercial Vessels
Flywheel components for inboard diesel engines used in cargo vessels, passenger vessels, and other commercial marine applications. The correct configuration depends on the propulsion engine and gearbox arrangement.
Fishing Boats and Workboats
Marine engine replacement parts for working vessels that rely on diesel propulsion systems. Engine model identification and coupling interface verification are important when sourcing replacement components.
Marine Generator Sets
Flywheels for auxiliary diesel engines connected to onboard generator assemblies. The required configuration depends on the alternator coupling and engine mounting arrangement.
Pleasure Craft and Inboard Boats
Replacement or customized flywheel components for selected inboard marine engines, subject to engine model and transmission compatibility.
Marine engine flywheel projects often involve specific installation requirements that are not fully represented by general product dimensions. Different engine versions may use different flywheel assemblies, ring gears, spacers, and housing configurations.
SEHY supports customized marine flywheel manufacturing for engine parts distributors, marine equipment suppliers, and OEM customers. Production requirements can be evaluated using existing components, engineering drawings, or original equipment references.
For a marine engine flywheel inquiry, please provide:
Marine engine manufacturer, model, and serial number
Main propulsion or auxiliary generator application
Original flywheel part number, if available
Flywheel diameter, thickness, and center bore
Crankshaft mounting bolt arrangement
Flywheel housing or SAE interface information, where applicable
Marine gearbox or generator coupling model
Starter ring gear tooth count and specifications
Required cast iron grade and machining details
Estimated order quantity
These details help clarify the installation configuration and manufacturing requirements before quotation.
Contact SEHY to discuss your marine engine flywheel requirements and customized casting and machining solutions.
Both are mounted on the engine crankshaft, but their connection requirements may differ. Marine flywheels often need to match specific gearbox, coupling, flywheel housing, or generator interfaces. Compatibility should be evaluated according to the complete marine power system.
Not necessarily. The gearbox connection depends on the flywheel's mounting arrangement, coupling dimensions, axial position, and the corresponding engine housing configuration. The gearbox model and technical drawing should be checked before replacement.
An SAE flywheel housing interface refers to standardized mounting dimensions used in certain engine and driven-equipment arrangements. It helps define the mechanical connection between the engine housing and compatible equipment. The applicable size and configuration must be confirmed for each project.
Yes. Marine generator engines use flywheels that work with the specified alternator coupling and mounting arrangement. The flywheel configuration should match the engine and generator assembly requirements.
Check the engine manufacturer, model, serial number, and original part number. Also verify the crankshaft mounting dimensions, flywheel housing, gearbox or generator coupling, and starter ring gear specifications. Production revisions may affect part compatibility.
Yes. SEHY supports customized flywheel production based on customer drawings, 3D models, physical samples, and technical specifications. Material, casting geometry, machining interfaces, and inspection requirements can be discussed before production.
