Premier manufacturer and supplier of heavy-duty industrial components
Engineered for extreme structural rigidity and superior vibration damping
Constructed from premium, high-grade gray cast iron
Precision CNC-machined mounting surfaces for flawless alignment
Exceptional thermal stability and immense load-bearing capacity
Fully customizable dimensions, weights, and cutout configurations

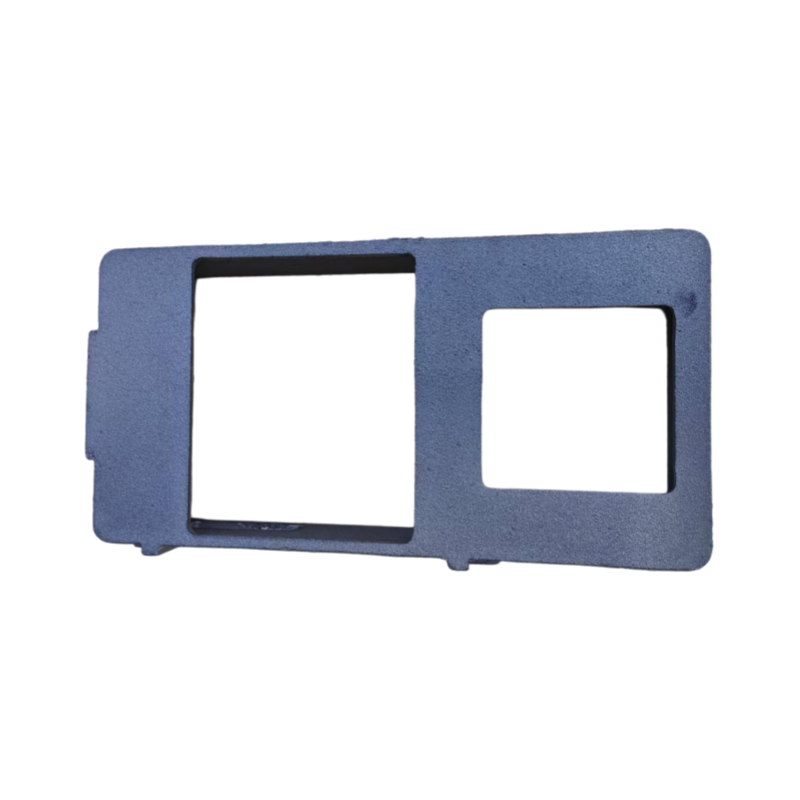

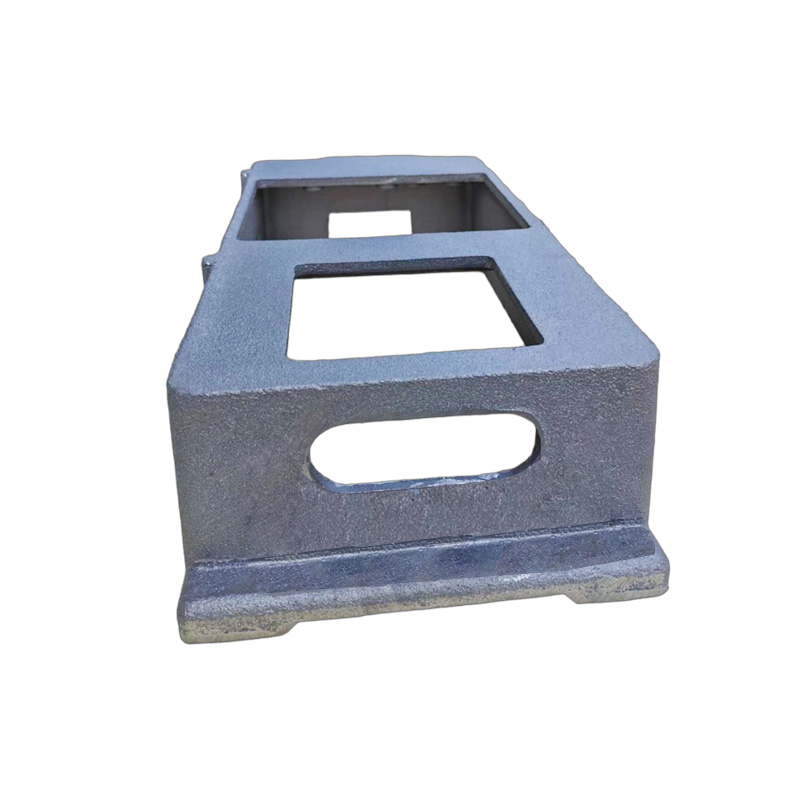

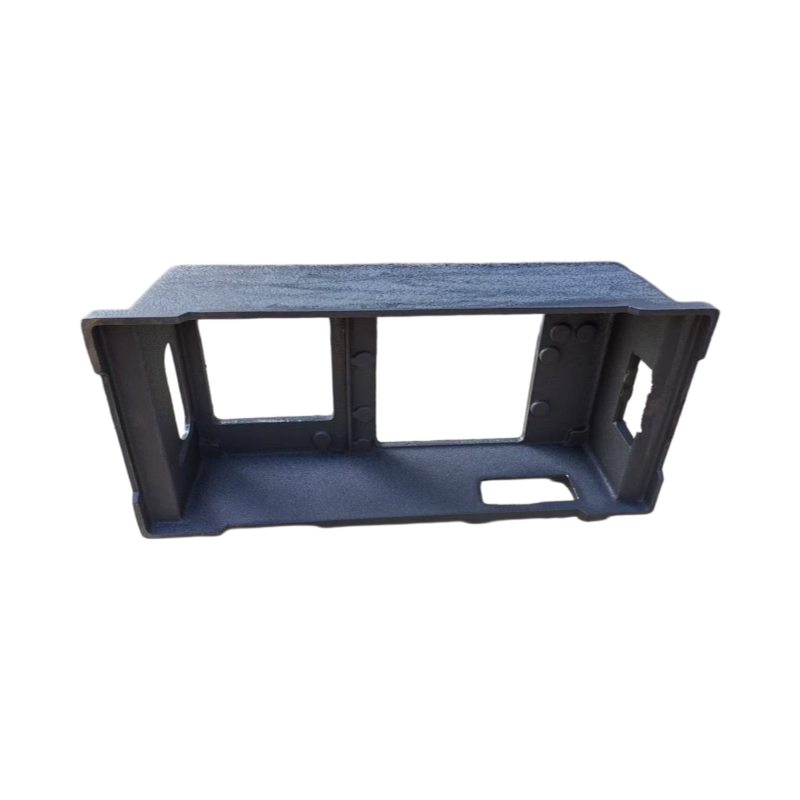

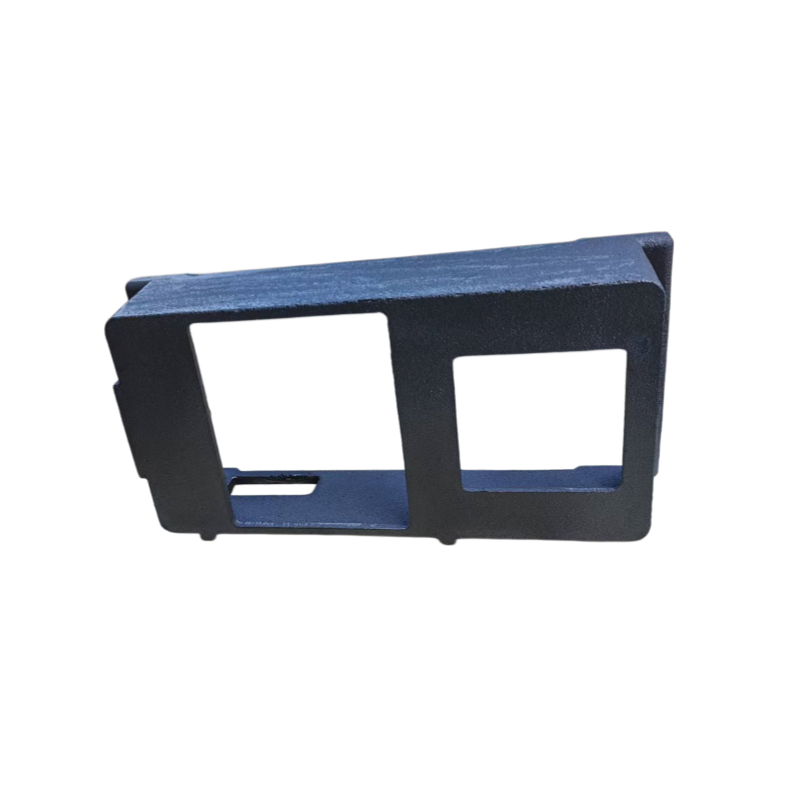

The foundation of any high-precision industrial machinery dictates its ultimate operational success. Our High-Performance Gray Iron Equipment Base Machined Castings are meticulously engineered to provide an immovable, rock-solid foundation for the most demanding and rigorous operational environments. When you run your hand across the CNC-finished mounting surfaces, you can immediately feel the flawless, ultra-smooth texture that guarantees perfect alignment for your critical moving components. The dense, heavy structure of the gray iron inherently possesses a low-resonance quality; it acts as an acoustic sponge, swallowing mechanical vibrations and dampening harsh operational noise, thereby transforming a chaotic machine floor into a highly controlled, precision-focused environment. By utilizing advanced sand casting methodologies combined with exacting machining tolerances, these bases completely eliminate the microscopic warping and flexing that frequently plague lighter, fabricated steel alternatives. Every contour, thickened wall, and integrated cutout is purposefully designed to distribute massive dynamic loads evenly across the footprint. Whether exposed to the relentless pounding of heavy hydraulic presses or the microscopic precision requirements of high-speed CNC lathes, this cast iron base remains dimensionally inert, ensuring your equipment operates at peak efficiency without the risk of premature wear, misalignment, or structural fatigue.
Parameter | Specification |
|---|---|
Material | Gray cast iron (HT200 / HT250 / HT300, compatible with GG20-30, FC200-300, ASTM No.30-45) |
Manufacturing Process | Resin sand casting / Lost foam casting + CNC precision machining |
Tolerance | ±0.05mm (mounting surfaces), ±0.1mm (general dimensions) |
Surface Treatment | As-cast / Shot blasting / Anti-rust paint / Black oxide / Powder coating (optional) |
Hardness | HB 180-230 (varies by grade) |
Tensile Strength | 200-300 MPa (varies by grade) |
Weight Range | 20kg - 18,000kg (customizable for non-standard) |
Size Range | 300mm - 2000mm and above (customizable for non-standard) |
Quality Standards | ISO 9001, ASTM A48, DIN, JIS |
MOQ | From 1 piece (supports prototyping and high-volume production) |
Lead Time | 3-6 weeks (standard orders) |
Warranty | 12 months |
Designing machinery that performs flawlessly under immense stress requires components that refuse to compromise. Our machined castings are packed with features specifically engineered to elevate the performance, longevity, and reliability of your industrial systems, ensuring your operations never miss a beat.
Flawless Surface Flatness: Advanced CNC-machined mounting zones achieve a strict ±0.05mm tolerance, ensuring that attached motors, linear rails, and robotic arms sit perfectly flush, completely eliminating alignment-induced mechanical stress.
Acoustic and Kinetic Absorption: The unique graphite flake structure within the gray iron matrix acts as a natural sponge for kinetic energy, drastically reducing operational noise and preventing harmonic vibrations from ruining precision tasks.
Unwavering Thermal Inertia: Capable of withstanding severe temperature fluctuations, the dense casting maintains its exact dimensional footprint, preventing the warping that often plagues welded steel frames during continuous, high-heat operations.
Optimized Weight Distribution: Engineered with reinforced, thick-walled ribbing, the base actively channels heavy dynamic loads down to the floor, providing a highly stable, anti-slip anchor for top-heavy or rapidly moving machinery.
The core strength of our equipment bases lies in the uncompromising quality of the raw material. By utilizing premium-grade gray cast iron, encompassing HT200 through HT300 and their international equivalents (such as GG20-30 and ASTM No.30-45), we deliver a foundation that thrives under extreme pressure. The natural graphite flake microstructure of this material is the secret behind its exceptional physical properties, offering a sensory experience of pure, unyielding solidity.
Unmatched Compressive Strength: Easily supports massive static and dynamic loads without yielding, bending, or fracturing, ensuring the utmost safety and reliability for heavy industrial setups.
Superior Vibration Damping: The internal graphite flakes interrupt vibration waves, absorbing kinetic energy and preventing it from traveling through the machine, which is absolutely critical for maintaining ultra-high precision in cutting or measuring.
Exceptional Thermal Stability: Inherently resists expansion and contraction during rapid temperature shifts, keeping the structural geometry perfectly intact even in harsh, heat-intensive manufacturing environments.
Achieving the perfect balance between massive structural integrity and microscopic precision requires a highly sophisticated manufacturing approach. We synergize advanced casting techniques with state-of-the-art CNC machining centers to transform raw molten iron into a masterpiece of industrial engineering, ensuring every unit meets the highest global standards.
Advanced Casting Techniques: Utilizing premium resin sand and lost foam casting methods allows us to create complex, thick-walled geometries with incredibly dense internal structures, completely free from porosity or shrinkage cavities.
Precision CNC Milling & Boring: High-speed, multi-axis machining centers meticulously finish every critical surface, bringing mounting tolerances down to an exacting ±0.05mm for flawless, friction-free component integration.
Strategic Ribbing Design: Internal reinforcement ribs are cast directly into the base, vastly multiplying the overall rigidity of the unit without adding unnecessary bulk or dead weight to your final assembly.
No two industrial applications are exactly alike, which is why we offer an end-to-end customization service tailored entirely to your specific engineering drawings. From compact 20kg support brackets to massive 18,000kg machine beds, our flexible production lines are built to accommodate your exact requirements with zero friction and absolute precision.
Limitless Geometric Freedom: We cast complex internal cavities, integrated fluid channels, and specific cutout configurations directly into the base, saving you from expensive and time-consuming secondary machining.
Scalable Production Volume: Whether you require a single prototype for a revolutionary new machine design or continuous high-volume production runs, our facility adapts seamlessly to your demand schedule with an MOQ starting at just 1 piece.
Ready-to-Assemble Delivery: By pre-drilling mounting holes, anchoring points, and cable routing access precisely to your spec, we deliver a plug-and-play foundation that dramatically accelerates your final assembly process.
Trust is built on verifiable, consistent quality. To ensure that every single casting performs flawlessly in the field, our manufacturing facility operates under a rigorous ISO 9001 certified quality management system. We leave absolutely nothing to chance, subjecting every unit to a gauntlet of tests before it is approved for global shipment.
Comprehensive Material Analysis: Every batch of molten iron undergoes strict chemical composition and mechanical property testing to guarantee it meets the exact tensile (200-300 MPa) and hardness (HB 180-230) specifications required.
CMM Dimensional Verification: Coordinate Measuring Machines meticulously scan the finished bases, verifying that every flat surface, angle, and threaded hole perfectly matches your CAD models down to the micron.
Non-Destructive Testing (NDT): We employ advanced ultrasonic and magnetic particle inspections to peer deep inside the casting, ensuring the internal structure is entirely free from hidden micro-fractures, voids, or structural defects.
Industrial environments are notoriously harsh, often exposing critical equipment to moisture, chemical spills, and abrasive debris. To protect your investment and maintain a sleek, professional appearance, we provide a comprehensive suite of surface finishing options tailored specifically to your operational environment and aesthetic preferences.
Intensive Shot Blasting: Every casting is thoroughly shot-blasted to remove foundry scale and surface impurities, creating a perfectly clean, textured surface that maximizes the adhesion of subsequent protective coatings.
Heavy-Duty Anti-Rust Coatings: Premium anti-rust primers and paints create a formidable barrier against oxidation, significantly extending the lifespan of the base in humid, damp, or highly corrosive atmospheres.
Aesthetic and Functional Finishes: Choose from sleek black oxide treatments for internal, oil-exposed components, or durable powder coatings that resist chipping, scratching, and chemical degradation while enhancing the visual appeal of the final machinery.
The sheer versatility and unyielding strength of our gray iron bases make them the preferred foundational choice across a vast spectrum of demanding sectors. By providing an immovable anchor point, these castings elevate the performance, safety, and lifespan of critical equipment across the globe.
CNC & Machine Tools: Serving as the ultra-stable beds for lathes, milling centers, and grinders, where even a single micron of vibration can ruin an expensive workpiece.
Heavy Forging & Pressing: Absorbing the massive, repetitive kinetic shocks generated by industrial presses and forging hammers without suffering from metal fatigue or structural cracking.
Automation & Robotics: Providing the rigid, perfectly aligned frames necessary for high-speed robotic arms and automated assembly lines to maintain absolute positional accuracy over millions of cycles.
Precision Testing Equipment: Acting as the inert, vibration-free foundation required for sensitive laboratory instruments and industrial metrology devices to deliver perfectly accurate readings.
Securing high-quality structural components should never require compromising your project budget or your delivery timeline. Our gray iron castings offer a highly economical alternative to fabricated steel structures, backed by a robust, integrated supply chain that guarantees consistent, on-time delivery for your assembly lines.
Exceptional Machinability: Gray iron is inherently easier and faster to machine than carbon steel, drastically reducing tool wear and cutting hours, which translates directly into significantly lower production costs for you.
Elimination of Secondary Steps: By casting complex features, internal webs, and cutouts directly into the mold, we completely bypass the need for expensive post-casting modifications, welding, and stress-relieving treatments.
Reliable Delivery Schedules: Our streamlined production ecosystem and optimized inventory management allow us to maintain a highly dependable 3-6 week lead time for standard orders, keeping your production schedules moving forward without interruption.
Selecting the right manufacturing partner is just as critical as selecting the right material for your machinery. As an integrated manufacturer and supplier with a dedicated, independent factory, we possess the technical prowess and massive production capacity to bring your most complex engineering visions to life. We are deeply committed to fostering long-term, mutually beneficial partnerships with our global clients through transparency, reliability, and excellence.
End-to-End Manufacturing: We control the entire process in-house, from initial mold design and pouring to final CNC machining and inspection, ensuring uncompromising quality at every single stage of production.
Direct Factory Pricing: By eliminating intermediaries, we provide highly competitive pricing structures without ever sacrificing the integrity, tolerances, or performance of the final cast product.
Global Export Expertise: With years of dedicated experience serving international markets, our logistics team ensures smooth, secure, and timely delivery of heavy castings to your facility, anywhere in the world.
Dedicated Engineering Support: Our technical team works collaboratively with your designers to optimize casting geometries for better structural performance, easier assembly, and lower overall manufacturing costs.
A: Gray cast iron vastly outperforms welded steel in vibration damping and thermal stability. The natural graphite flakes in gray iron absorb kinetic energy, drastically reducing noise and mechanical wear. Additionally, cast iron is poured as a single, homogenous piece, eliminating the internal stresses, weak joints, and potential warping commonly associated with steel weldments.
A: Absolutely. Our facility is fully equipped to handle a massive weight range, from compact 20kg brackets up to colossal 18,000kg machine beds. We utilize large-scale resin sand casting techniques to ensure these heavy-duty components maintain perfect structural integrity, density, and dimensional accuracy throughout.
A: We provide comprehensive quality documentation with every shipment to ensure total peace of mind. This includes detailed material test reports (MTR) verifying chemical composition and tensile strength, dimensional inspection reports from our CMM checks, and any requested Non-Destructive Testing (NDT) certificates, all fully compliant with our ISO 9001 standards.
A: Yes, utilizing advanced lost foam and resin sand casting methodologies, we can create highly intricate internal geometries. This allows for the seamless integration of coolant channels, hydraulic fluid reservoirs, or complex wiring conduits directly into the base, saving you significant secondary machining and assembly time.
A: We take extreme care in our packaging and global logistics processes. After the final surface treatment, the heavy castings are securely bolted to heavy-duty, fumigated wooden pallets or enclosed in reinforced custom crates. They are then tightly shrink-wrapped and treated with industrial desiccants to prevent any moisture damage or oxidation during ocean or air transit.
