Integrated manufacturer and supplier delivering premium industrial components for global engineering demands.
Engineered specifically to withstand the extreme operational stresses of heavy-duty machinery applications.
Fully customizable configurations, ranging from rapid prototypes to high-volume mass manufacturing.
Direct factory supply ensuring stringent quality control, reliable delivery schedules, and highly competitive pricing.

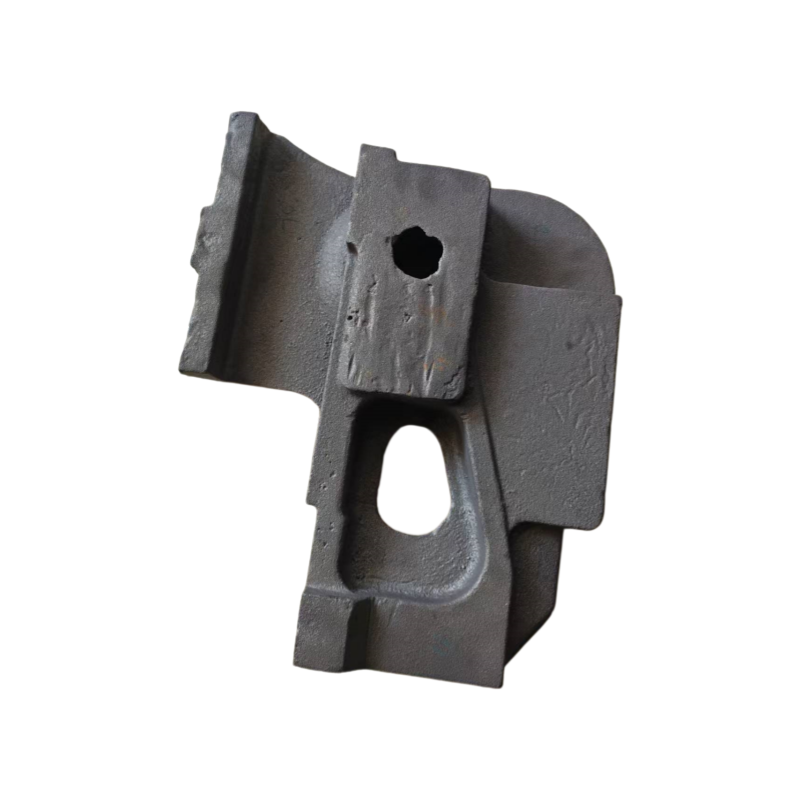

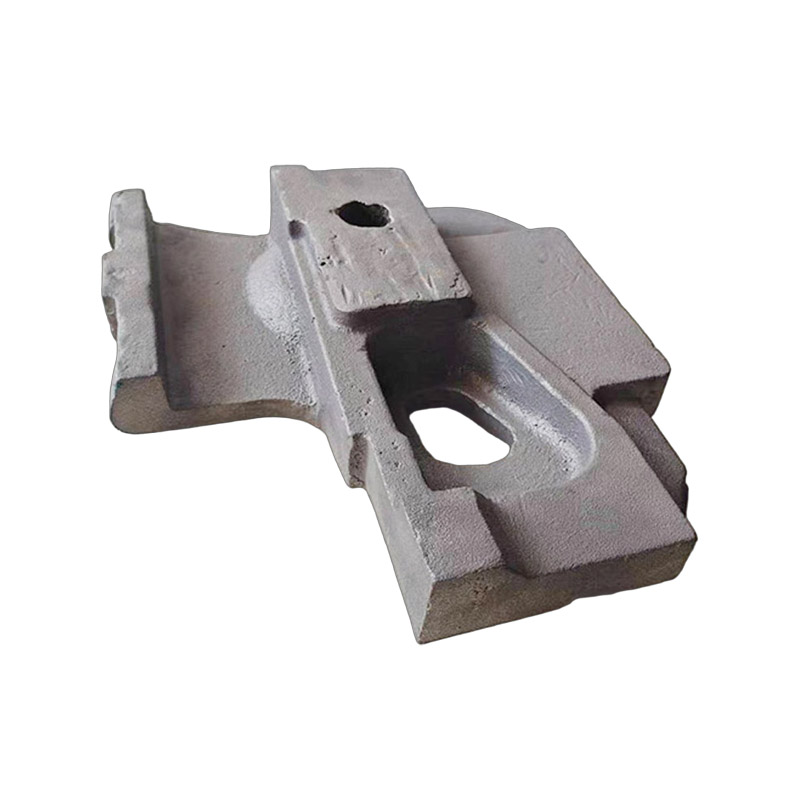

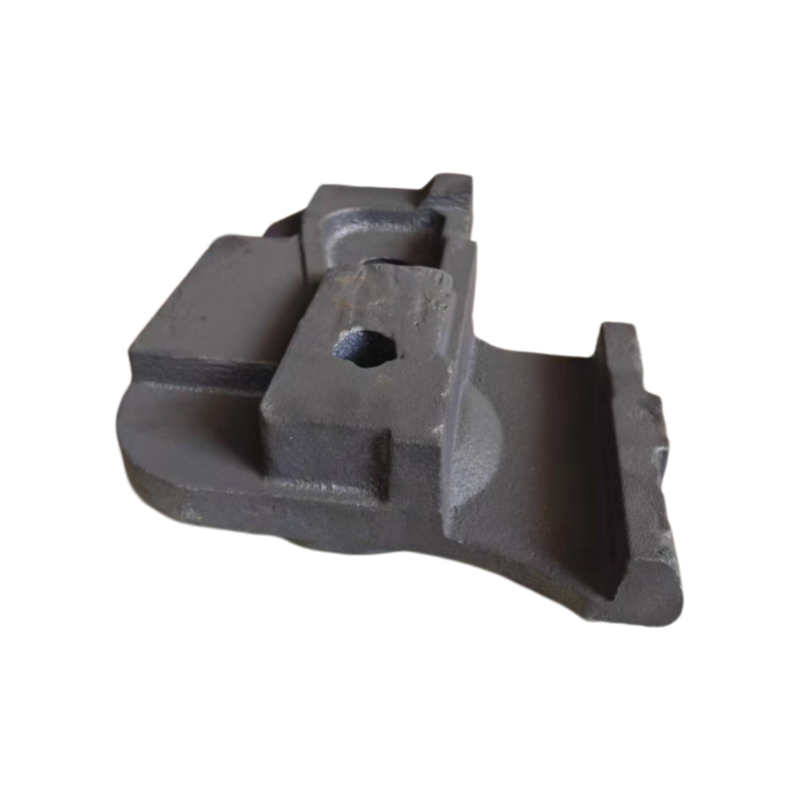

Step into a realm of uncompromising industrial strength with our high precision gray iron machined castings. When you run your hand across the surface of these components, you immediately feel the dense, uniform metallic structure that speaks volumes about their inherent durability. The smooth, cool touch of the meticulously CNC-machined finish reveals the flawless execution of complex geometric designs, free from the rough, porous textures often found in inferior metalwork. These castings are not merely parts; they are the foundational bedrock that keeps heavy machinery operating smoothly, quietly, and efficiently under the most punishing conditions imaginable.
Every casting is born from the intense heat of the foundry, where premium gray cast iron is poured and shaped to absolute perfection. The natural graphite flakes within the iron matrix act as microscopic shock absorbers, dampening the deep, rhythmic vibrations and harsh mechanical clatter that typically plague heavy-duty equipment. This unique acoustic and structural dampening translates directly to less wear and tear on adjacent moving parts, drastically reducing maintenance downtime. Whether exposed to the biting chill of outdoor construction sites or the radiating heat of industrial pump rooms, these components maintain their absolute dimensional stability, refusing to warp or yield. By integrating these robust castings into your assembly line, you are investing in a legacy of reliability, ensuring your machinery performs with unwavering precision year after year.
Material | Gray cast iron (HT200 / HT250 / HT300, customizable) |
Manufacturing Process | Sand casting (Resin Sand / Lost Foam / Auto Molding) + Precision CNC machining |
Weight Range | 5-50 kg (Customizable up to 2000 kg) |
Size Range | 100-1500 mm (Customizable) |
Tolerance | ±0.05mm |
Hardness | HB 180-230 |
Tensile Strength | 200-300 MPa |
Surface Treatment | As-cast / Black oxide / Anti-rust paint / Powder coating / Electrophoresis |
Inspection Methods | CMM, Hardness Tester, Spectrometer, NDT (Ultrasonic, Magnetic Particle, Dye Penetrant) |
Quality Standards | ISO 9001:2015, ASTM A48 |
Production Capacity | Support high-volume mass manufacturing & prototype orders (Flexible MOQ) |
Lead Time | 3-5 weeks (Standard orders) |
Warranty | 12 months against manufacturing defects |
Our gray iron machined castings are meticulously crafted to solve the most demanding structural challenges in heavy industry. By focusing on the exact pain points of mechanical assembly and long-term operation, we deliver components that elevate the entire system's performance and longevity.
Exceptional Vibration Damping: The inherent graphite flake structure naturally absorbs kinetic energy, significantly reducing operational noise and preventing devastating stress fractures in connected machinery.
Flawless CNC Machining: We eliminate the frustration of misaligned assemblies. Every mounting hole and mating surface is machined to exacting tolerances, allowing technicians to drop the part seamlessly into place without forced fitting.
Thermal Dimensional Stability: Operating environments with rapid temperature fluctuations will not compromise the integrity of these components. They resist thermal warping, ensuring moving parts never bind or seize during critical operations.
Self-Lubricating Properties: The microscopic graphite within the iron provides a degree of natural lubrication, which drastically reduces friction and extends the lifespan of components subjected to continuous sliding wear.
Complex Geometry Consolidation: Advanced casting techniques allow us to create intricate internal cavities and complex external shapes in a single solid piece, entirely eliminating the structural weaknesses associated with welded joints.
The foundation of any heavy-duty component lies in its metallurgical composition. We utilize premium-grade gray cast iron (HT200, HT250, and HT300) to forge components that boast exceptional structural strength and immense load-bearing capacity. This material is engineered specifically for resilience in unforgiving environments.
The natural graphite flake structure imparts unparalleled vibration-damping capabilities, effectively silencing the harsh clatter of heavy machinery and protecting delicate internal sensors.
Exceptional thermal stability ensures that even under severe temperature fluctuations, the castings retain their exact shape, preventing catastrophic equipment failure and maintaining tight operational clearances.
Built to endure, these distinct metallurgical properties directly translate to a significantly extended service life, maximizing the return on investment for your heavy equipment.
We successfully bridge the gap between raw foundry power and microscopic precision. By integrating mature sand casting methodologies—including resin sand, lost foam, and automated molding—with state-of-the-art CNC machining centers, we achieve what standard foundries cannot.
This dual-process approach allows us to cast highly complex geometric shapes and intricate internal structures in a single unified piece. The immediate benefit to your assembly line is the complete elimination of secondary welding, which often introduces weak points and alignment issues.
Furthermore, our rigorous machining protocols lock dimensional tolerances tightly within ±0.05mm. This guarantees that every bore, flange, and mounting surface aligns perfectly, facilitating rapid, frustration-free assembly for your engineering teams and reducing overall labor costs.
Industrial reliability is never left to chance. Our entire manufacturing ecosystem operates under the strict governance of the ISO 9001:2015 quality management system, ensuring every single batch meets uncompromising global standards before it leaves our facility.
Material Verification: Advanced spectrometers and hardness testers verify the exact chemical composition and mechanical strength of the raw iron before a single mold is poured.
Dimensional Audits: High-precision Coordinate Measuring Machines (CMM) map the physical dimensions of the finished castings, ensuring absolute adherence to your complex CAD models.
Internal Integrity: We offer comprehensive Non-Destructive Testing (NDT), including ultrasonic, magnetic particle, and dye penetrant inspections, to guarantee the absence of hidden voids, porosity, or micro-cracks.
Heavy machinery rarely operates in forgiving environments. To combat the relentless assault of moisture, chemical exposure, and abrasive friction, we offer a comprehensive suite of protective surface treatments tailored to your specific operational hazards.
Whether you require the sleek, penetrating protection of black oxide, the heavy-duty shielding of anti-rust paint, or the uniform, chip-resistant finish of powder coating and electrophoresis, we have the exact solution. These customized coatings synergize with the dense, uniform structure of the cast iron, creating an impenetrable barrier that drastically enhances oxidation resistance, corrosion immunity, and overall wear defense.
Your engineering requirements are unique, and your supply chain should be adaptable enough to meet them without hesitation. We possess robust, independent mold development capabilities, allowing us to transform your conceptual drawings into tangible, high-performance components swiftly.
Unmatched Scalability: From a single prototype piece for rigorous R&D testing to high-volume mass manufacturing runs, our flexible production lines accommodate your specific volume requirements seamlessly.
Broad Weight Capacity: We expertly cast components as light as 5 kg for intricate mechanisms, scaling all the way up to massive 2000 kg structural bases for the largest industrial applications.
Extensive Size Range: Capable of producing non-standard castings ranging from 100 mm to 1500 mm in dimension, ensuring a perfect fit for highly specialized and proprietary equipment designs.
The sheer versatility and unyielding strength of our gray iron machined castings make them the component of choice across a diverse spectrum of demanding industrial sectors. They are engineered to thrive where lesser materials buckle and fail.
In the realm of heavy machinery and machine tools, they serve as the immovable, vibration-absorbing bases and beds for CNC lathes, milling machines, and heavy presses. For construction and agricultural equipment, they form the rugged brackets and structural supports for excavators and harvesters operating under immense dynamic loads.
Furthermore, their exceptional pressure-retaining capabilities make them ideal for industrial pump and compressor housings, while their wear resistance is perfectly suited for critical structural components in railway and global transportation networks.
Selecting the right manufacturing partner is a critical decision that impacts your entire production timeline, product quality, and ultimate market reputation. We operate as an integrated industry leader, combining independent factory capabilities with global export expertise to deliver unparalleled value to your operations.
End-to-End Capabilities: From initial design optimization and mold creation to final CNC machining and surface finishing, we control the entire process under one roof, ensuring strict quality oversight at every juncture.
Direct Factory Economics: By eliminating unnecessary intermediaries, we provide highly competitive pricing structures without ever compromising on the metallurgical integrity or machining precision of our castings.
Technical Engineering Support: Our team of seasoned metallurgists and mechanical engineers works collaboratively with your designers to optimize casting geometries, reducing unnecessary weight and cost while maximizing structural strength.
Reliable Global Delivery: With a proven track record of international trade, we understand the critical nature of production lead times. We ensure your components arrive on schedule, securely packaged to prevent transit damage.
Customer-Centric Philosophy: We view our relationship not as a mere transaction, but as a long-term strategic partnership. Your success and growth in the marketplace are the direct measures of our manufacturing excellence.
To assist your engineering and procurement teams in making highly informed decisions, we have compiled detailed answers to the most common technical inquiries regarding our high-precision gray iron machined castings.
Q: How do you ensure the internal soundness of massive castings weighing over 500 kg?
A: For large-scale heavy castings, we employ advanced gating and riser designs optimized through sophisticated solidification simulation software. Post-casting, we utilize rigorous Non-Destructive Testing (NDT), specifically ultrasonic testing, to probe deep into the core of the material, ensuring there are no hidden shrinkage cavities or porosity that could compromise structural integrity.
Q: Can the HT300 gray iron grade be used for components subjected to high friction?
A: Absolutely. HT300 offers a higher pearlitic matrix and greater hardness (up to HB 230) compared to lower grades. Combined with the natural lubricating properties of the graphite flakes inherent in the iron, it exhibits excellent wear resistance, making it highly suitable for sliding guides, gear housings, and heavy-duty brake components.
Q: What is the typical process for transitioning from a single prototype to mass manufacturing?
A: We begin with a highly flexible molding process, such as resin sand or 3D printed sand molds, for rapid prototyping. Once your engineering team validates the prototype's form, fit, and function, we develop durable, high-volume tooling (such as automated molding plates) to ensure consistent repeatability and maximum cost-efficiency for mass production runs.
Q: How do your surface treatments perform in highly corrosive outdoor environments?
A: For severe outdoor exposure or chemically aggressive environments, we highly recommend our electrophoresis or multi-layer powder coating options. These advanced treatments provide a uniform, tightly bonded protective layer that significantly outperforms standard anti-rust paint, successfully resisting moisture penetration, salt spray, and UV degradation.
Q: What specific documentation is provided with a shipment of precision machined castings?
A: We provide a comprehensive quality dossier with every batch to support your internal compliance. This typically includes Material Test Reports (MTRs) detailing the exact chemical composition and mechanical properties, a rigorous dimensional inspection report generated from our CMM, and any requested NDT certification, ensuring full traceability for your quality assurance records.
