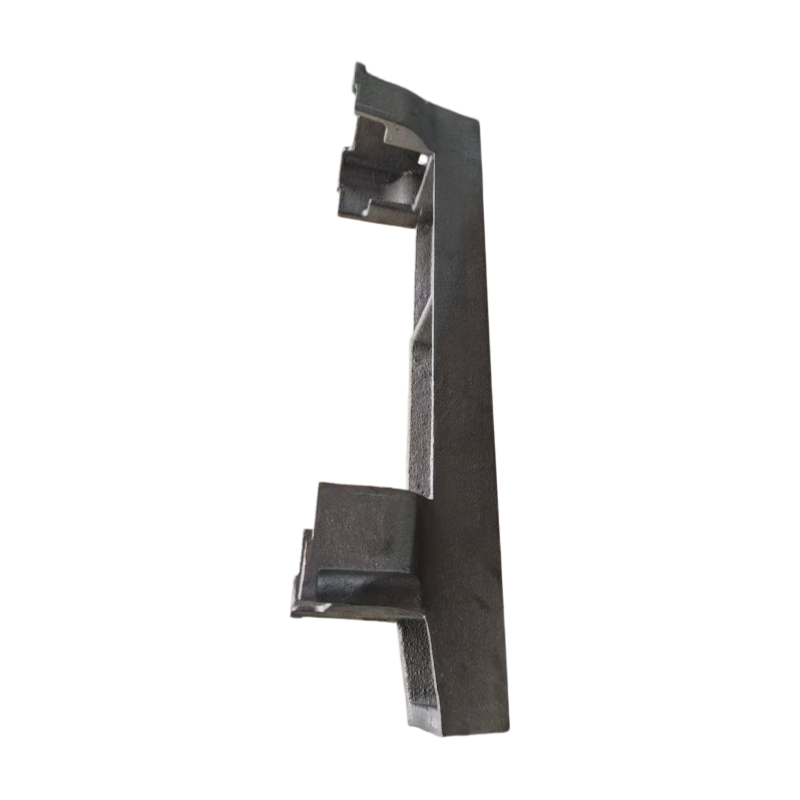

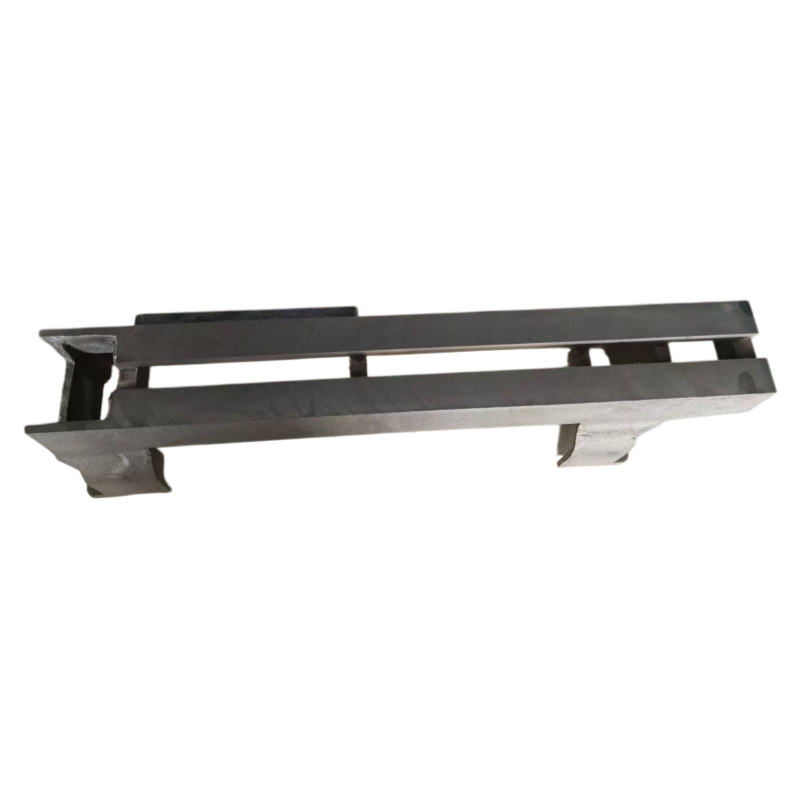

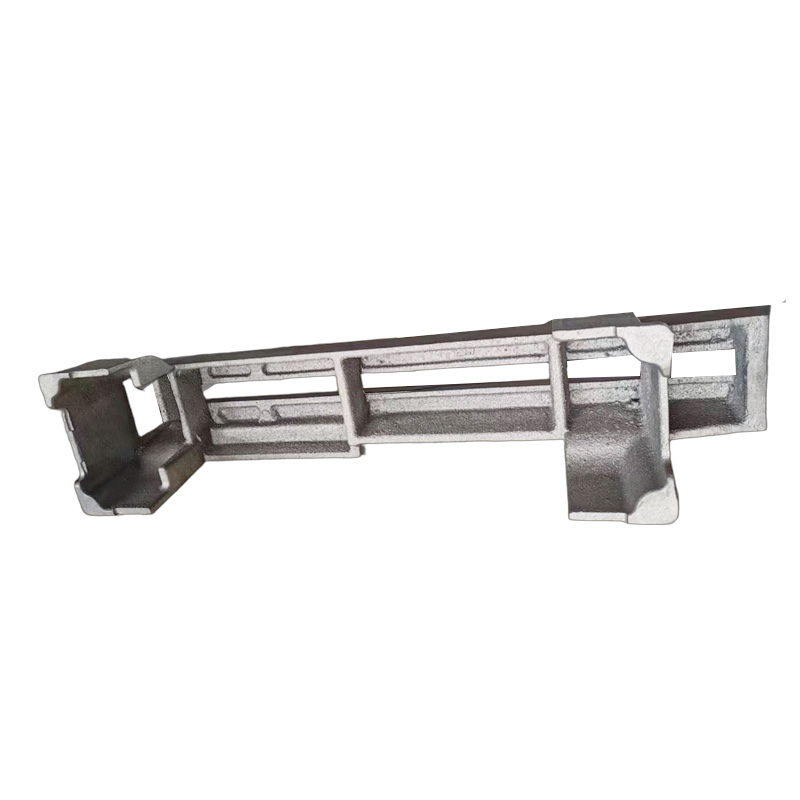

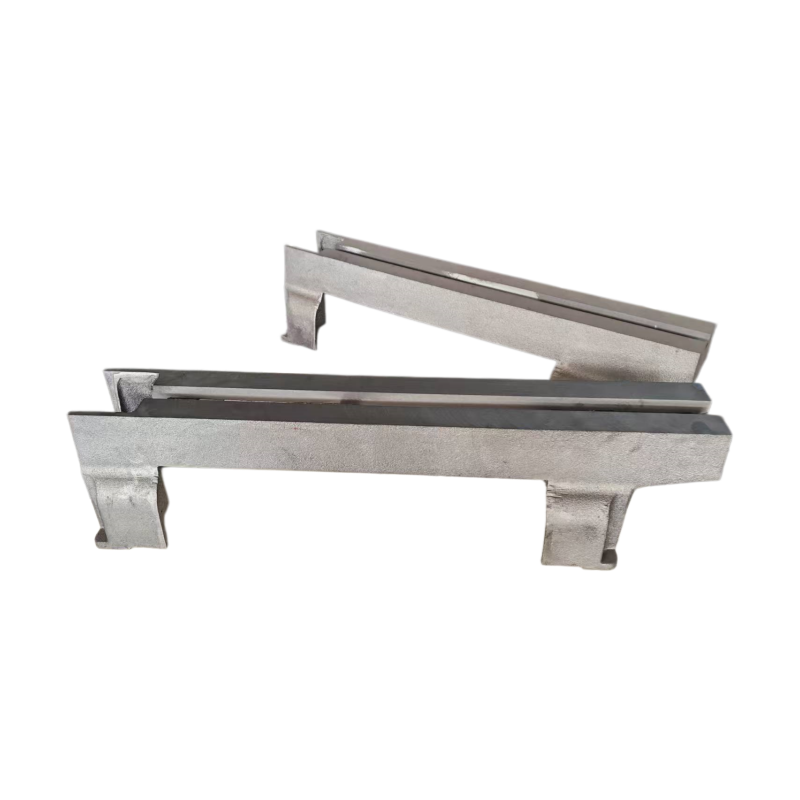

As a premier manufacturer and global supplier of industrial components, we provide high-strength gray iron structural machined castings engineered for demanding applications.
Constructed from premium HT200, HT250, and HT300 gray cast iron to deliver exceptional rigidity and vibration damping.
Processed through advanced sand casting and precise CNC machining, achieving tight tolerances of ±0.05mm.
Fully customizable dimensions ranging from 200mm to 2000mm to suit diverse structural requirements.
Direct factory supply model ensuring uncompromising quality control and highly competitive pricing for large-scale procurement.
Engineered to form the unyielding backbone of heavy industrial machinery, our high-strength gray iron CNC machined structural castings offer an unparalleled combination of structural integrity and precision. When you run your hand across the surface of these castings, you can immediately feel the smooth, refined finish—a direct result of meticulous CNC machining achieving a surface roughness of Ra3.2 to Ra12.5. The dense, cool touch of the premium gray iron speaks to its solid metallurgical composition, specifically designed to absorb the harsh, rhythmic vibrations and deafening noises typical in high-capacity manufacturing environments.
By integrating these robust structural components into your equipment, you instantly upgrade the stability and operational accuracy of your entire system. The inherent thermal stability of the graphite-flake microstructure ensures that even as temperatures fluctuate during relentless, continuous operation, the casting maintains its exact dimensional footprint without warping or yielding. This translates to significantly less downtime for recalibration and a drastic reduction in mechanical wear on connected moving parts. Ultimately, these structural castings solve the critical challenge of maintaining microscopic precision in macroscopic, heavy-duty applications, empowering your operational efficiency and extending the lifespan of your most valuable machinery.
Parameter | Specification |
|---|---|
Material | Gray cast iron (HT200 / HT250 / HT300, customizable) |
Manufacturing Process | Sand casting + CNC machining |
Sand Core Type | Resin Sand Core |
Tolerance | ±0.05mm (depending on feature) |
Surface Roughness | Ra3.2 - Ra12.5 |
Surface Treatment | As-cast / Anti-rust paint / Black oxide / Powder coating |
Hardness | HB 180-230 (varies by grade) |
Tensile Strength | 200-300 MPa (varies by grade) |
Weight Range | 10-100 kg (customizable) |
Size Range | 200-2000 mm (customizable) |
Quality Standards | ISO 9001, ASTM A48, GB/T 1348, GOST |
Lead Time | 3-5 weeks (standard orders; custom orders vary) |
MOQ | 1 piece (Flexible for prototypes and high-volume) |
Warranty | 12 months against manufacturing defects |
Applications | Machine Tool Frames, Heavy Machinery, Transportation, Industrial Automation, Energy Equipment |
Our structural machined castings are meticulously crafted to meet the exact demands of modern industrial engineering. By focusing on both material excellence and dimensional accuracy, these components eliminate common assembly bottlenecks and drastically enhance overall equipment performance.
Optimized Strength-to-Weight Ratio: Intelligent internal ribbed structures are cast directly into the component, maximizing load-bearing capabilities while preventing unnecessary bulk and weight.
Seamless Assembly Integration: Complex geometric designs and precise hole alignments mean the component is ready for immediate installation, completely bypassing the need for costly and time-consuming secondary welding.
Acoustic and Mechanical Dampening: The natural graphite flakes within the iron matrix act as microscopic shock absorbers, drastically reducing operational noise and mechanical fatigue on surrounding parts.
Thermal Distortion Resistance: Maintains absolute geometric integrity even under extreme temperature variations, ensuring your machinery operates flawlessly in the harshest industrial climates.
Superior Internal Integrity: Advanced resin sand core casting prevents internal porosity, resulting in a dense, uniform structure that resists cracking under heavy, repeated stress.
Selecting the right metallurgical foundation is critical for the longevity of heavy-duty equipment. We offer a comprehensive range of gray cast iron grades, including HT200, HT250, and HT300, allowing you to perfectly match the specific tensile strength and hardness requirements of your engineering project.
Exceptional Vibration Damping: The unique graphite microstructure naturally absorbs kinetic energy, neutralizing destructive vibrations before they can affect delicate precision components.
High Structural Rigidity: Built to withstand immense compressive loads without yielding, providing a rock-solid, unshakeable base for dynamic and rotating machinery.
Thermal Stability: Resists expansion and contraction during continuous, heat-generating operations, safeguarding against microscopic misalignments that could halt production.
Inherent Wear Resistance: The self-lubricating nature of the graphite within the gray iron minimizes friction-induced wear, ensuring long-term reliability even in high-contact scenarios.
The journey from raw molten metal to a high-precision component requires absolute control over every manufacturing phase. We combine traditional resin sand core casting with state-of-the-art CNC machining to achieve complex geometries that would otherwise require multiple welded assemblies, thereby eliminating weak points.
Resin Sand Core Technology: Ensures exceptionally smooth internal cavities and intricate shapes, significantly reducing the likelihood of casting defects like sand inclusions.
Micron-Level Precision: Our multi-axis CNC machining centers guarantee tight dimensional tolerances of ±0.05mm, ensuring every part fits perfectly the first time.
Refined Surface Finish: Achieving Ra3.2 to Ra12.5 surface roughness for perfect mating surfaces, superior sealing capabilities, and an overall professional aesthetic appeal.
Integrated Features: Casting complex mounting points, flanges, and structural ribs directly into the single piece to enhance overall strength and reduce your assembly time.
In the realm of industrial manufacturing, reliability is not an option; it is an absolute necessity. Our manufacturing facilities operate under a rigorous ISO 9001 certified quality management system, ensuring that every casting delivered meets the highest international standards, including ASTM A48, GB/T 1348, and GOST.
Chemical Composition Analysis: Advanced spectrometers verify the exact metallurgical makeup of every molten batch before pouring, ensuring material consistency.
Mechanical Property Testing: Rigorous checks for tensile strength (200-300 MPa) and hardness (HB 180-230) to guarantee the structural integrity of the final product.
Coordinate Measuring Machine (CMM): Validating complex geometries and micron-level tolerances against your original CAD designs with pinpoint accuracy.
Non-Destructive Testing (NDT): Utilizing ultrasonic and magnetic particle inspections to detect any hidden internal voids or surface anomalies, ensuring zero-defect delivery.
No two industrial projects are exactly alike. As a dedicated manufacturing partner, we provide end-to-end OEM and ODM services, transforming your technical blueprints into tangible, high-performance reality with remarkable flexibility and engineering support.
Scalable Volume: Seamlessly transitioning from a single prototype piece for proof-of-concept testing to full-scale, high-volume production runs without compromising quality.
Extensive Size Capabilities: Accommodating a vast array of dimensions, ranging from compact 200mm components up to massive 2000mm structural frames.
Broad Weight Range: Expertly pouring and machining components tailored to your exact mass requirements, comfortably managing weights from 10 kg up to 100 kg.
Engineering Support: Collaborative design optimization, mold flow analysis, and rapid tooling development to significantly accelerate your time-to-market.
Industrial environments are notoriously unforgiving, constantly exposing equipment to moisture, harsh chemicals, and continuous abrasive forces. To combat these destructive elements, we offer a variety of specialized surface treatments that complement the naturally dense and corrosion-resistant microstructure of gray cast iron.
Anti-Rust Paint: Provides a robust, cost-effective barrier against atmospheric moisture during overseas transit and standard operational environments.
Black Oxide Coating: Delivers a sleek, dark finish that offers mild corrosion resistance while strictly maintaining exact dimensional tolerances without adding thickness.
Powder Coating: Creates a thick, highly durable, and aesthetically pleasing shield against severe chemical exposure, physical impacts, and abrasions.
As-Cast Finish: Available for components requiring further proprietary treatments, painting, or specialized coatings at your own assembly facilities.
Our high-strength structural castings serve as the trusted foundation for critical infrastructure and machinery worldwide. By consistently delivering unyielding performance and exact precision, we have successfully integrated our components into a multitude of demanding and high-stakes sectors.
Machine Tool Frames: Providing the massive, vibration-absorbing bases required for high-precision CNC lathes, milling machines, and grinding equipment.
Heavy Machinery: Serving as rugged brackets, structural supports, and chassis elements for earth-moving construction vehicles and agricultural equipment.
Transportation Systems: Forming highly durable structural nodes for railway bogies, transit systems, and heavy-duty commercial vehicle frames.
Industrial Automation: Acting as stable, precision-machined bases for robotic arms, automated assembly lines, and high-speed conveyor systems.
Energy Equipment: Withstanding the intense continuous vibrations and thermal stress found in power generation turbines, generators, and industrial compressors.
Managing procurement risks and maintaining budget efficiency are paramount for large-scale industrial operations. Gray cast iron offers superior machinability compared to steel, allowing for faster cutting speeds and reduced tool wear, which translates directly into lower production costs for complex, heavy-duty parts.
Predictable Lead Times: Streamlined manufacturing processes and efficient scheduling ensure standard orders are fulfilled within a highly reliable 3 to 5-week window.
Comprehensive Documentation: Full material test reports (MTR) and detailed inspection certificates accompany every shipment, providing complete traceability and compliance.
Long-Term Warranty: We stand behind our engineering and craftsmanship with a solid 12-month warranty against any manufacturing defects, securing your investment.
Direct Manufacturer Pricing: Eliminating unnecessary middlemen to provide you with highly competitive pricing structures without ever compromising on material or machining quality.
Partnering with the right manufacturer is the key to securing a competitive edge and ensuring the smooth operation of your supply chain. We operate as a fully integrated design, production, and supply enterprise, dedicated to delivering high-standard components that align perfectly with your strategic engineering goals.
Independent Factory Operations: Maintaining full control over the entire production lifecycle ensures uncompromising quality, strict confidentiality, and schedule adherence.
Advanced Technical Strength: Our seasoned engineering team excels at turning complex, customized ideas into highly functional, manufacturable, and cost-effective designs.
Customer-Centric Workflow: From the initial technical consultation to post-delivery support, we provide responsive, high-quality service at every single touchpoint.
Global Export Capability: Extensive experience in international logistics, packaging, and customs compliance guarantees safe, timely delivery to your facilities anywhere in the world.
To assist you in making an informed procurement decision, we have compiled answers to the most common technical inquiries regarding our gray iron structural castings.
Gray cast iron possesses a unique graphite-flake microstructure that acts as a natural, microscopic shock absorber. It offers significantly higher vibration damping capacity than fabricated steel structures. This makes it the superior choice for machine bases and frames where minimizing resonance is critical for maintaining high-speed precision and extending tool life.
Absolutely. By utilizing advanced resin sand core technology, we can cast highly intricate internal cavities, cooling channels, and reinforced ribbing directly into the component. This engineering approach minimizes the overall weight of the casting while simultaneously maximizing its structural rigidity and load-bearing capacity.
We maintain strict traceability throughout our production process. Every shipment can be accompanied by comprehensive documentation upon request, including Material Test Reports (MTR) detailing the exact chemical composition and mechanical properties, as well as Coordinate Measuring Machine (CMM) inspection reports verifying all critical dimensions and tolerances.
Our facility is equipped with state-of-the-art multi-axis CNC machining centers capable of maintaining strict dimensional tolerances of ±0.05mm. Furthermore, we can achieve refined surface roughness levels ranging from Ra3.2 to Ra12.5, ensuring perfect alignment, smooth movement, and optimal sealing for all mating components.
We offer highly flexible production capabilities designed to support your development cycle. We start with a Minimum Order Quantity (MOQ) of just one piece for your initial prototyping and proof-of-concept testing. Once the prototype is fully validated by your engineering team, our scalable tooling and automated casting lines allow for a seamless, cost-effective transition to high-volume manufacturing without any unnecessary delays.
